Conforming standards:
IEC 61643-21 compliant
RoHSⅡ compliant

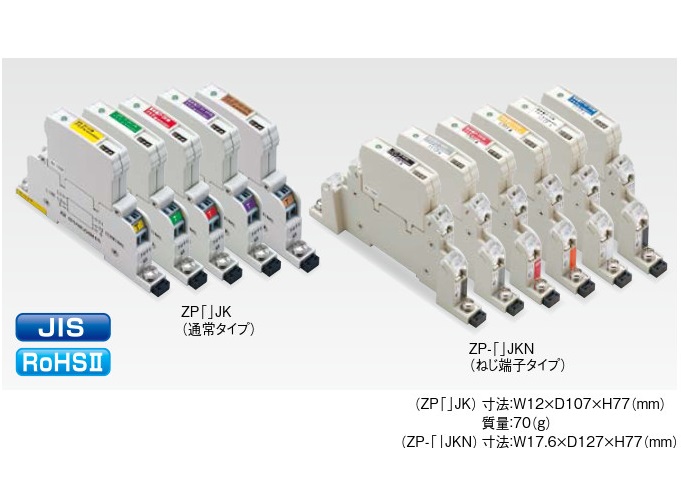

Features:
Slim design enables space saving
Plug-in type (circuit not broken by inserting or removing plug)
DIN rail mountable (35 mm)

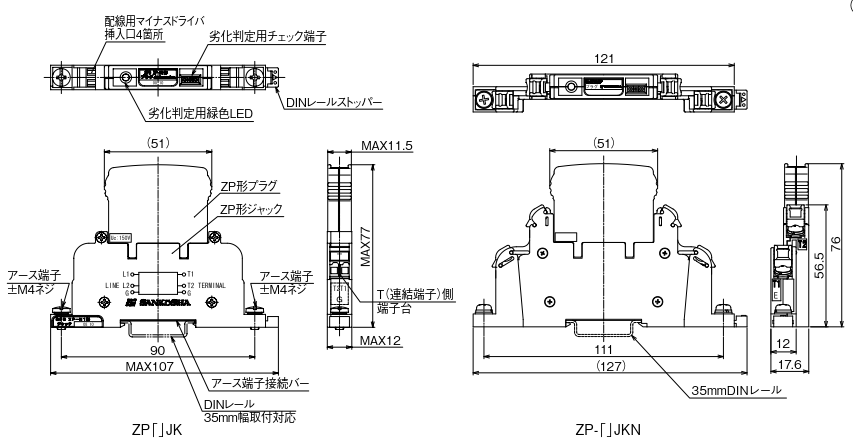

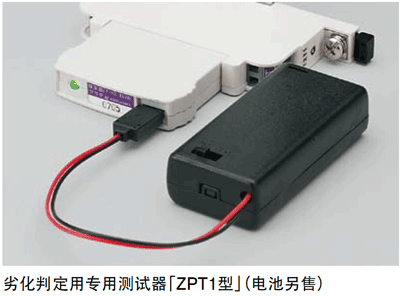

Special tester (ZPT1 type) can be used to detect deterioration.
Round type crimped terminal for M4 (N type)
Item | Performance | |||||
ZP-A1 | ZP-DC24 | ZP-DC48 | ZP-H2-H1 | ZP-N1 | ||
Applications | Telephone line, ISDN line, ADSL line, xDSL line | DC 24V Signal circuit, control circuit | DC 48V signal circuit, control circuit | RS422, RS485 | Balanced circuit, wind speed meter, pyranometer, rain gauge, hygrometer | |
Maximum continuous operating voltage (Uc) | DC170V | DC27V | DC52V | DC5V | DC150V | |
Rated current | DC100mA | DC3A | DC100mA | DC3A | ||
Series resistance | 10Ωor less | - | 5Ω±10% | - | ||
Voltage protection level (Up) | 1.0 kV or less | 500V or less | 50V or less | 1.0 kV or less (to ground) 50V or less (inter line) * In case of balanced circuit | ||
Impulse durability (two lines together) | Category C2 (8/20 μs) | 10 kA (10 times) | 4kA (10 times) | 10kA (10 times) | 4kA (10 times) | |
Category D1 (10/350 μs) | 2.5 kA (2 times) | 1kA (2 times) | 2.5kA (2 times) | 1kA (2 times) | ||
Operating environmental conditions | Rated operating temperature | -40°C to +70°C | ||||
Rated operating humidity | 96% or less (no condensation) | |||||
Wiring method | Relay wiring (○), Suspended wiring (×) | Relay wiring (○), | Relay wiring (○), Suspended wiring (×) | Relay wiring (○), | ||
Item | Performance | |||||
ZP-NM | ZP-EN-1 | ZP-EN3 | ZP-K2 | ZP-H3(06,12,24,48V) | ||
Applications | Multi-core measurement line,disaster prevention monitoring board (multi-core), wind speed meter, platinum thermometer | Telephone line, ADSL, EPBX, xDSL | ISDN, xDSL, digital leased line | AC/DC 110V control circuit, relay circuit,speaker line | Instrumentation line, potentiometer, slow pulse,DC 4-20mA, RS232C, RS422, RS485 | |
operating voltage (Uc) | DC150V | DC170V | DC52V | DC180V AC140V | DC9V(06V), DC13.5V(12V), DC27V(24V), DC52V(48V) | |
Rated current | - | DC100mA | DC3A | DC400mA(06v), DC100 mA (12, 24, 48v) | ||
Series resistance | - | 10Ω or less | - | 5Ω±10% | ||
Voltage protection level (Up) | 1.0 kV or less (to ground) 50V or less (inter line) | 400V or less | 200V or less | 800V or less | 80V or less (06V), 100V or less (12V ),120V or less (24V ), 140V or less (48V ) | |
Impulse durability (two lines together) | Category C2 (8/20 μs) | 4kA (10 times) | 10kA (10 times) | 4kA (10 times) | 10kA (10 times) | |
Category D1(10/350 μs) | 1kA (2 times) | 2.5kA (2 times) | 1kA (2 times) | 2.5kA (2 times) | ||
Operating environmental conditions | Rated operating temperature | -40°C to +70°C | ||||
Rated operating humidity | 96% or less (no condensation) | |||||
Wiring method | Relay wiring (×), Suspended wiring (○) | Relay wiring (○), Suspended wiring (×) | Relay wiring (○), Suspended wiring (○) | Relay wiring (○), Suspended wiring (×) | ||
