Conforming standards:

IEC 61643-21 compliant

RoHSⅡ compliant

CRCC approved (TB/T2311-2008,TB/T3074-2003) (CLP-H3b,c,d)

Features:
High withstand capacity suitable for multiple lightning zones
Plug-in type
DIN rail mountable (35 mm)
Certified explosion-proof products available
Round type crimped terminal for M3 (width less than 6.6 mm) 　(N type)

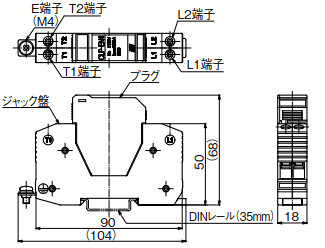

_(2$SR$PLFKZ0S70)%V1OTO

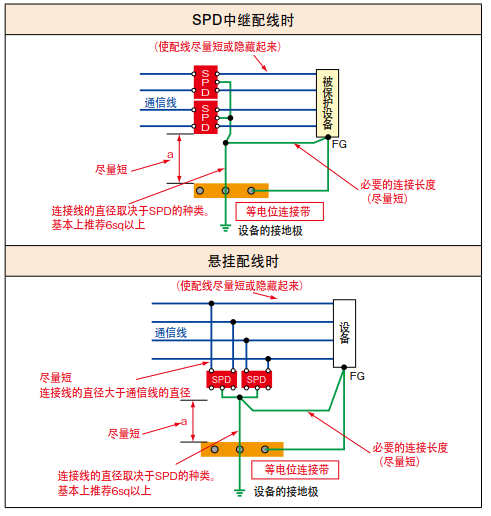

Wiring method for SPD for communication and signal lines (1)

$FK60K~C$T@7KOPEW]3AI7

Wiring method for SPD for communication and signal lines (2)

051E]]%TU7GT]$AQ2IO[~3

Ideally, SPD should be installed at zone boundaries after LPZ design has been carried out.

If the distance between the SPD installation point and the protected device is 10 m or more, the installation of extra SPD would be an ideal solution.

For induced lightning countermeasures, SPD should be installed close to the protected device.

Item		Performance
		CLP-EN1JK CLP-EN1JKN	CLP-EN3JK CLP-EN3JKN	CLP-K2JK CLP-K2JKN	CLP-K3JK	CLP-VA65JK CLP-VA65JKN	CLP-N1JK CLP-N1JKN	CLP-NMJK CLP-NMJKN	CLP-H3「」JK CLP-H3「」JKN
Applications		ADSL line, telephone line, EPBX, telemetry line	ISDN line, leased line, digital leased line	AC/DC 110V control circuit	Remote monitoring equipment	DC 12/24/48V power supply, remote monitoring equipment	Disaster prevention monitoring board, balanced circuit, teleconference, pyranometer, rain gauge, hygrometer	Multi-core measurement line, disaster prevention monitoring board (multi-core), wind speed meter, platinum thermometer	Fire alarm, wind speed meter, potentiometer, slow pulse
Maximum continuous operating voltage (Uc)		DC170V	DC52V	DC180V	DC250V	DC65V	DC52V	DC170V	a：DC9V b：DC13.5V c：DC27V d：DC52V
Rated current		DC100mA		DC3A		DC1A	DC3A		DC100mA
Series resistance		5Ω±10％		―					5Ω±10％（100mA）
Voltage protection level (Up)		400Vor less	200V or less	1.3kV or less		330V or less	900V or less	1.0ｋV or less（L-E） 50V or less（L-L）	a：40V or less b：45V or less c：60V or less d：90V or less
Impulse durability (two lines together)	Category C2（8/20μs）	10kA（10 times）		4ｋA（10 times）		10ｋA（10 times）
	Category D1(10/350μs）	5ｋA（2 times）		2ｋA（2times）	1ｋA（2 times）		5ｋA（2times）
Operating environmental conditions	Rated operating temperature	-40℃～+70℃
	Rated operating humidity	96% or less (no condensation)
Wiring method		Relay wiring (○),Suspended wiring (×)		Relay wiring (○),Suspended wiring (○)			Relay wiring (×),Suspended wiring (○)		Relay wiring (○),Suspendedwiring (×)
