SMB-P・R type

IEC Category C2/D1 compliant

Inquire Now Online Message

Product Details

Specification Parameters

Attachment Download

Conforming standards:

IEC 61643-21 compliant

IEC category C2/D1 compliant

RoHSⅡ compliant

Features:

Applicant up to 10 core wiring

LED deterioration display function

Replacement recommendation display function

Lightning surge count display function

DIN rail (35mm) mounting

Design registered product

Applications:

Automatic fire alarm equipment

Multi line

@FX%46M1VXCNY_CSNU_17FX

Part name:

JZ2OEOHL28%G_S4CV%9102

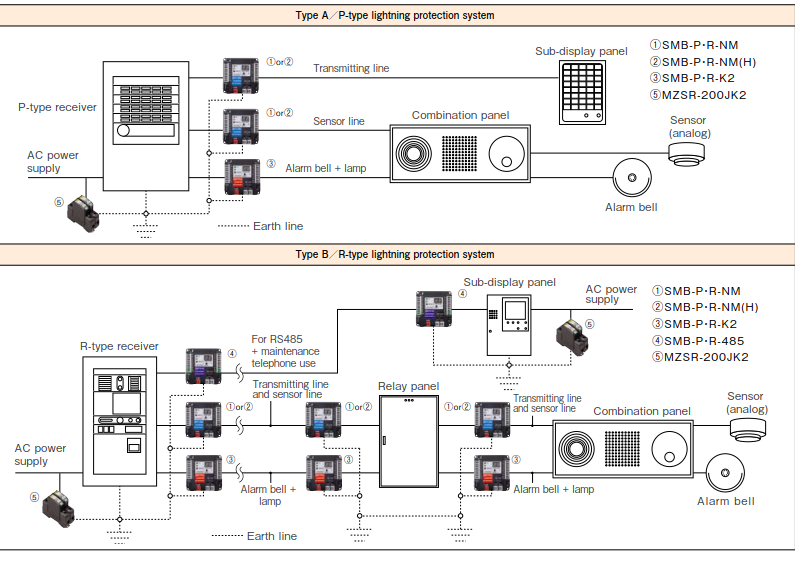

Examples of SPD installations:

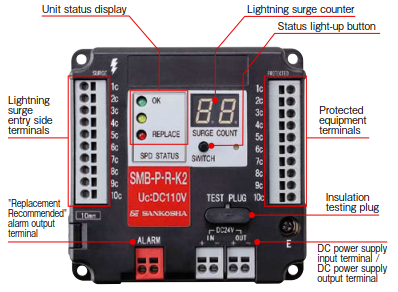

Innovative status display:

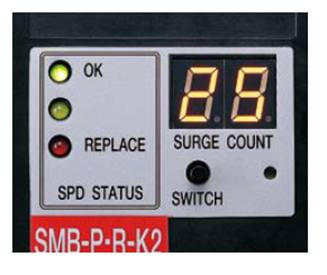

LEDs make the SPD status easier to read.

"Replacement Recommended" function helps you make a replacement before a malfunction occurs.

Green: OK

Yellow: Replacement recommended

Red: Replace

When replacement is recommended, the alarm terminal outputs an alarm signal.

QQ图片20250509185513

Light-emitting system:

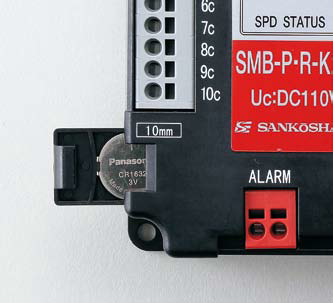

Uses two systems: button battery or DC power supply input. The LED-lamp status display and the 7-segment display in the surge counter light up.If the unit is only powered by a button battery, the status display will light up for several seconds when you press the "SWITCH" status light-up utton.

When running on a DC power supply input, the status display will be lit all the time. In addition, if you are using multiple HOWL2 units, you can wire them in parallel to a DC power supply. (Power consumption approx. 80 mA per unit)

Additional functions for use in insulation testing:

Please remove the TEST PLUG from the front of the HOWL2 before you test the insulation of fire alarm systems. This will suppress SPD electrical discharges and meet the specified values during the tests.

Be sure to put the TEST PLUG back in its original place after finishing insulation testing. To prevent you from forgetting to put the test plug back, an alarm will sound when the HOWL2 is operated without its plug in place.

Multiple cores:

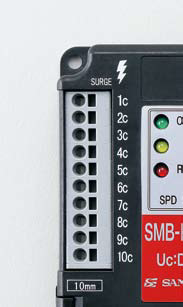

Even though the HOWL2 is small and compact, its cable can have 10 core wires.Must be installed by a qualified person.

Flexibility in mounting:

Even though the HOWL2 is small and compact, its cable can have 10 core wires.

The special adapter attaches to the HOWL2.

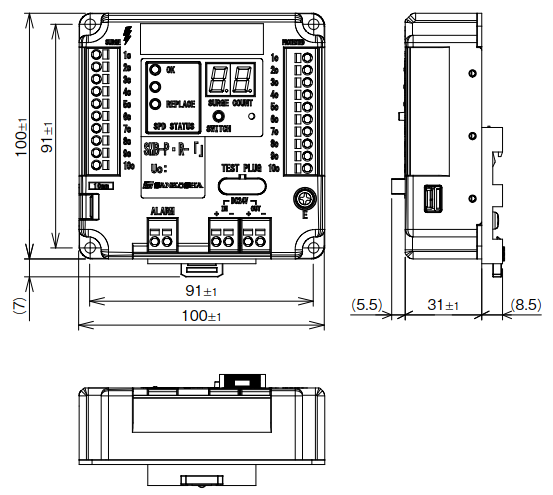

Item		Performance

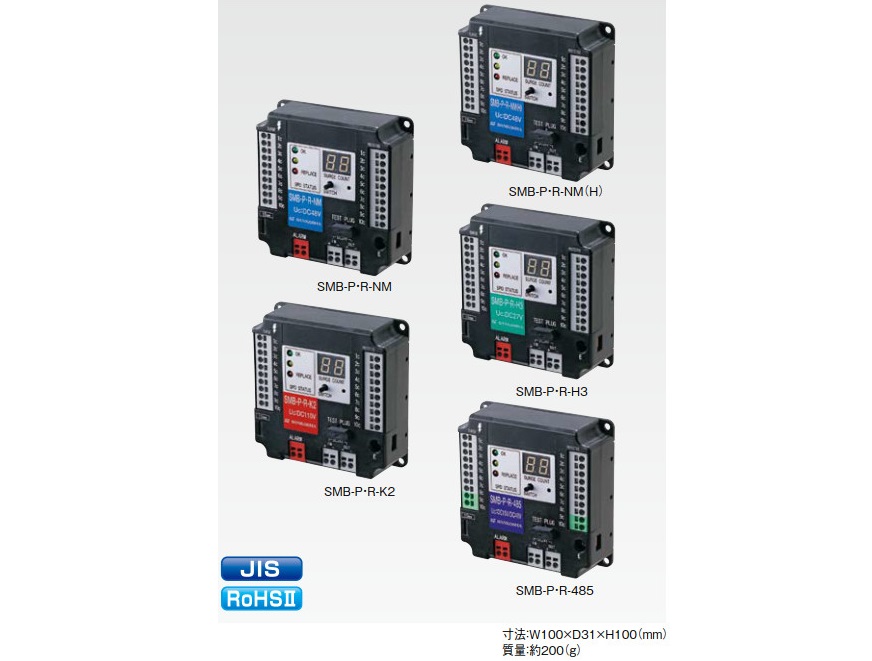

		SMB-P・R-NM	SMB-P・R-NM（H）	SMB-P・R-K2	SMB-P・R-H3	SMB-P・R-485
Application		Alarm transfer line, sensor line	Alarm transfer line, sensor line, high durability type for impluse current	Bell ＋ Display light	Instrumentation line (DC4-20mA etc）	RS485 ＋ Maintainance telephone
Maximum continuous operating voltage (Uc)		DC48V	DC48V	DC110V	27V	RS485	Maintainance telephone
						DC15V	DC48V
Rated current		1A		3A	100mA		1A
Series resistance		1Ω or less			4Ω～6Ω		1Ω or less
Impluse current durability	8/20μs	5kA	10kA	5kA
	10/350μs	2.5kA
Voltage protection level (Up)	1.2/50μs 10kV	≦500V	≦500V	≦1ｋV	≦150V	≦100V	≦500V
Connection core		10 cores				8 cores	2 cores
