RM-VS type

R&M Vs SPD for compact terminals

Inquire Now Online Message

Features:

R&m Vs compact terminals for lightning protection of general telephone lines and electronic switching systems

Ultra-thin thickness of 7mm ,high density by combination with VS compact terminal the safety wiring board can be constructed

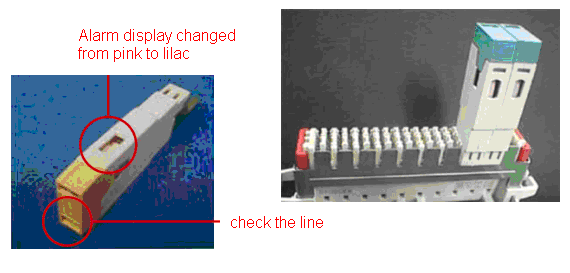

Alarm display:

Item		Performance
		RM-VSA1FS	RM-VSAS
Applications		General telephone line	Electronic switch
Voltage protection level (Up)		1.2kV or less	350V or less
		（1.2/50μs・2kV）	（1.2/50μs・1kV）
Impulse durability	Category C2 （8/20μｓ）	2kA	1kA
	Category D1 (10/350μｓ)	1kA	0.5kA
Insulation resistance		DC100V 100MΩ or more
Fail-safe operation		operating in short mode within 7seconds with single line 5A energized.After operation the alarm display turns purple	―
