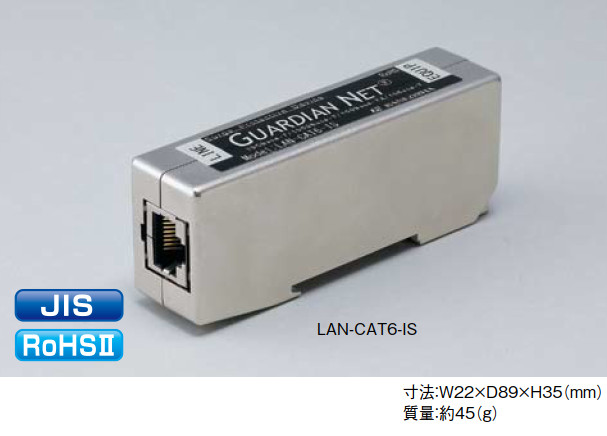

LAN-CAT6-IS type（Isolation type）

JIS C 5381-351 compliant
RoHSⅡ compliant

Inquire Now Online Message

Features

Uses isolation type circuits

10 Gbase-T enabled (up to cat.6)

Earth-free type not requiring earthing or protecting equipment without earthing connections

Impluse withstand voltage 5kV or more

DIN rail mountable (35mm)

Applications

Gigabit Ethernet

Networks cameras

Ordinary households (PCs, network devices)

Outdoors installed network devices

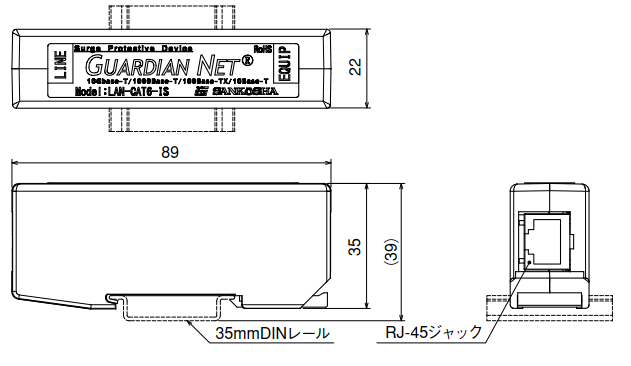

External view

DA8DBR@L6W]5%I~Q)RPG36I

Item		Performance
Item		Performance
Applicable lines	IEEE802.3	10BASE-T
	IEEE802.3u	100BASE-TX
	IEEE802.3ab	1000BASE-T
	IEEE802.3bz	2.5GBASE-T
	IEEE802.3an	5GBASE-T
	IEEE802.3an	10GBASE-T
Transmission loss		2.0dB or less（each line）
AC withstand voltage (1 minute, Cutoff current 1mA)		2.0kA or more（between primary and secondary line）
AC withstand voltage (1 minute, Cutoff current 1mA)		2.0kA or more（between primary and secondary line）
Impluse withstand voltage	1.2/50μｓ	5.0kA or more（between primary and secondary line）
