LAN-CAT6A-P+Ⅱ（R）type（Discharge type）

IIEC 61643-21 compliant
UL standard aquired (E140906)
RoHS Ⅱcompliant

Inquire Now Online Message

Features

Discharge type circuits

10Gigabit Ethernet

PoE Plus (IEEE802.3at) enabled PoE++（60W max）

DIN rail mountable (35mm)

Mountable on conductive DIN rail for batch earthing

Special tester (ZPT1 type) can be used to detect deterioration

Use

10Gigabit Ethernet

Network cameras

Wireless LAN access points

VoIP enabled telephones and servers

Outdoor installed network devices

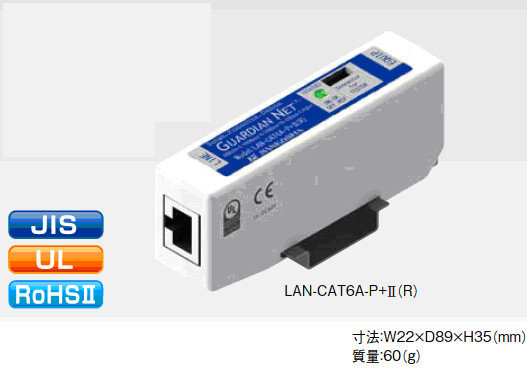

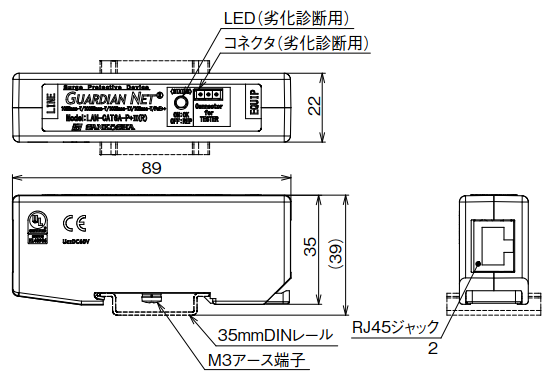

External view

1IH48ZOJDIJ~%P7@~B~I7J

Special tester

~1~(6_F9)WOQG28M8(LZ53K

Item		Performance
Item		Performance
Applicable lines	IEEE802.3	10BASE-T
	IEEE802.3u	100BASE-TX
	IEEE802.3ab	1000BASE-T
	IEEE802.3bz	2.5GBASE-T
	IEEE802.3bz	5GBASE-T
	IEEE802.3an	10GBASE-T
	IEEE802.3af	PoE
	IEEE802.3at	PoE+
	IEEE802.3bt	PoE++
Transmission loss	1～100MHz	1.0dB or less
	～250MHz	2.0dB or less
	～500MHz	4.0dB or less
Maximum continuous operating voltage (Uc)	Between PoE terminals	DC60V
Voltage protection level (Up)	Between each line and earth termina （1.2/50μs 10kV）	500V or less
Impulse durability	Category C2（8/20μｓ）	5kA （10 times）
Impulse durability	Category D1(10/350μｓ	2.5kA（2 times）
Maximum discharge current	Between 8 cores and shield to ground tatal(8/20μs)	10kA（10 times）
Maximum discharge current	Between 8 cores and shield to ground tatal(8/20μs)	10kA（10 times）
