LS-CAT5e-P+Ⅱ

IEC 61643-21 compliant
RoHS compliant

Inquire Now Online Message

Features

Discharge type circuits

Gigabit Ethernet 1000Base-T enabled PoE Plus (IEEE802.3at) enabled

Use the M4 Fixing screw

Applications

Gigabit Ethernet、 Network cameras Wireless LAN access points

VoIP enabled telephones and servers

Outdoor installed network devices

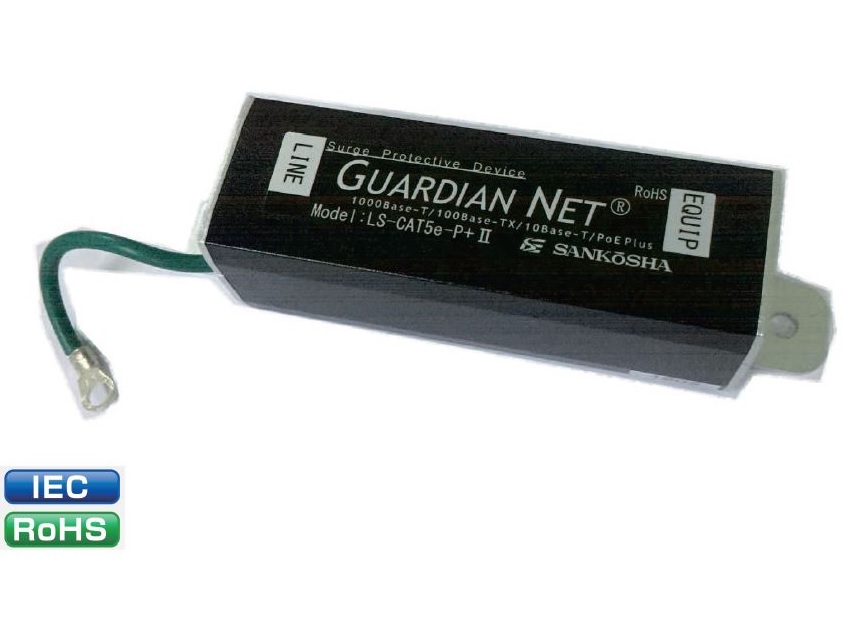

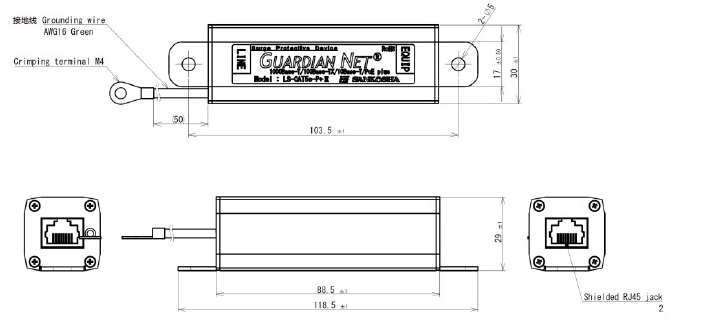

External view

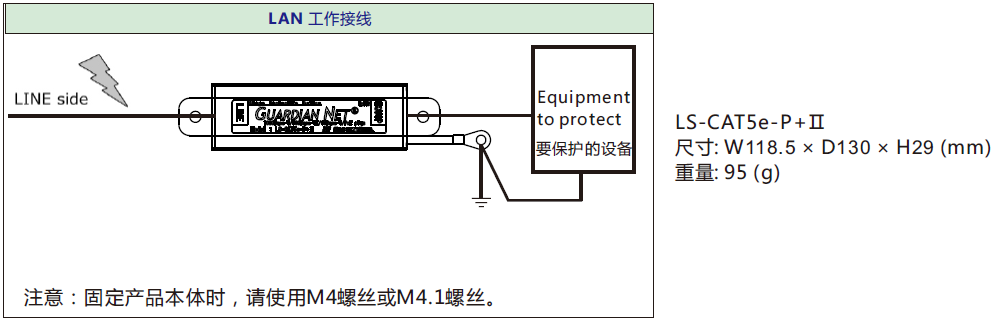

Installation examples

Item		Performance
Applicable lines	IEEE802.3	10BASE-T
	IEEE802.3u	100BASE-TX
	IEEE802.3ab	1000BASE-T
	IEEE802.3af	PoE
	IEEE802.3at	PoE Plus
Transmission loss		1.0dB or less
Maximum continuous operating voltage (Uc)	Between PoE terminals	DC60V
Maximum continuous operating voltage (Uc)	Between each line and earth terminal	DC60V
Voltage protection level (Up)	Between each line and earth terminal(1.2/50μs, 10kV)	500V or less
Impulse durability (Total of 8 cores)	Category C2 (8/20μs)	5kA (10 times)
Impulse durability (Total of 8 cores)	Category D1 (10/350μs)	2.5kA (2 times)
