LAN-CAT5e-P+Ⅱ（Discharge type）

IEC 61643-21 compliant
UL standard aquired (E140906)
RoHSⅡ compliant

Inquire Now Online Message

Features

Discharge type circuits

Gigabit Ethernet 1000Base-T enabled

PoE Plus (IEEE802.3at) enabled PoE++（up to 60W）

DIN rail mountable (35mm)

Mountable on conductive DIN rail for batch earthing

Special tester (ZPT1 type) can be used to detect deterioration.

products using patented

Applications

Gigabit Ethernet

Network cameras

Wireless LAN access points

VoIP enabled telephones and servers

Outdoor installed network devices

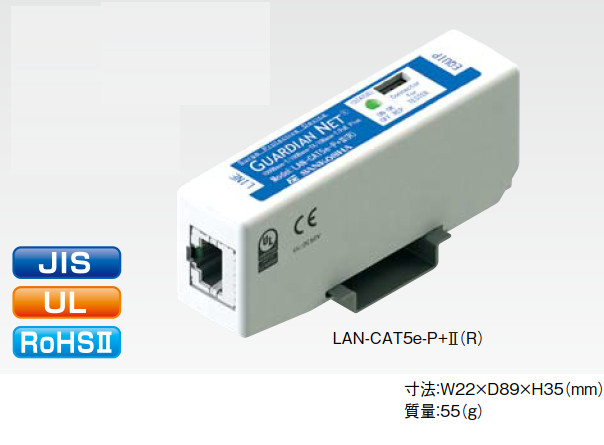

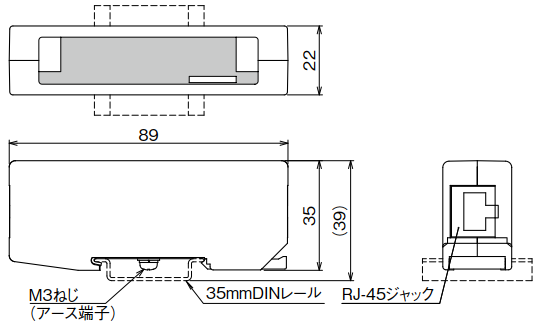

External view

Special tester

Item		Performance
Item		Performance
Applicable lines	IEEE802.3	10BASE-T
	IEEE802.3u	100BASE-TX
	IEEE802.3ab	1000BASE-T
	IEEE802.3bz	2.5GBASE-T
	IEEE802.3af	PoE
	IEEE802.3at/6t	PoE Plus、PoE++（up to 60W）
Transmission loss		1.0dB or less
Maximum continuous operating voltage (Uc)	Between PoE terminals	DC60V
Maximum continuous operating voltage (Uc)	Between each line and earth terminal	DC60V
Voltage protection level (Up)	Between each line and earth terminal （1.2/50μs 10kV）	500V or less
Impulse durability (Total of 8 cores)	Category C2（8/20μｓ）	5kA （10 time）
Impulse durability (Total of 8 cores)	Category D1(10/350μｓ)	2.5kA（2 time）
