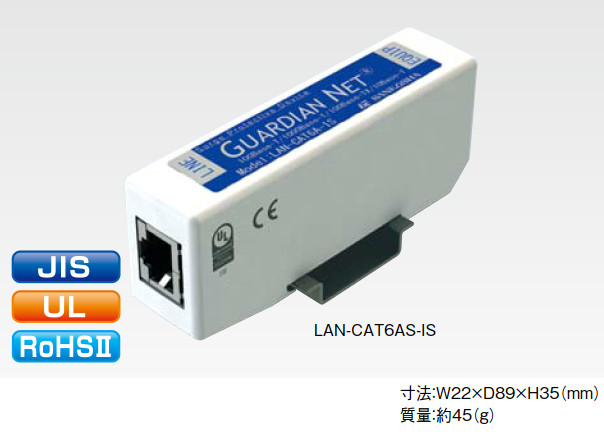

LAN-CAT6A-IS type（Special tester）

JIS C 5381-351 compliant
UL standard aquired (E532596)
RoHSⅡ compliant

Inquire Now Online Message

Features

Isolation type circuits

10 Gbase-T enabled (up to cat.6)

Earth-free type not requiring earthing or protecting equipment without earthing connections

DIN rail mountable (35mm)

Impluse withstand voltage 6kV or more

Also compatibie with UTP cable and STP cable(shield cable)

Applications

10Gigabit Ethernet

Networks cameras

Ordinary households (PCs, network devices)

Outdoors installed network devices

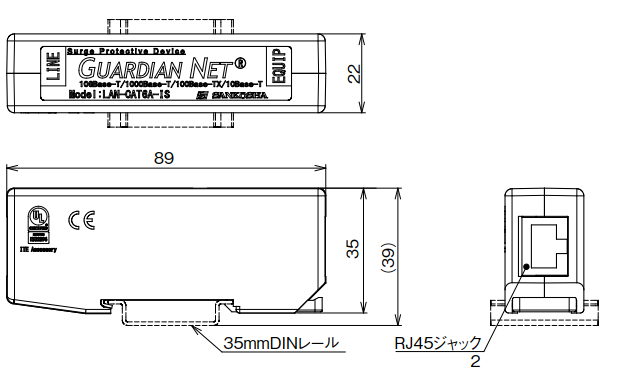

External view

)DOVWV[QRBY6U2Y$ZR2VLA

Item		Performance
Item		Performance
Applicable lines	IEEE802.3	10BASE-T
	IEEE802.3u	100BASE-TX
	IEEE802.3ab	1000BASE-T
	IEEE802.3bz	2.5GBASE-T
	IEEE802.3bz	5GBASE-T
	IEEE802.3an	10GBASE-T
Transmission loss	1～100MHz	1.0dB or less
	～250MHz	1.5dB or less
	～500MHz	3.0dB or less
AC withstand voltage (1 minute, Cutoff current 1mA)		2.0kA or more（between primary and secondary line）
AC withstand voltage (1 minute, Cutoff current 1mA)		2.0kA or more（between primary and secondary line）
Impluse withstand voltage	1.2/50μｓ	6.0kA or more（between primary and secondary line）
