LAN-1000IS-2 type（Isolation type）

JIS C 5381-351 compliant
UL standard aquired (E532596)
RoHSⅡ compliant

Inquire Now Online Message

Product Details

Specification Parameters

Attachment Download

Features

Isolation type circuits

Gigabit Ethernet 1000Base-T enabled

Earth-free type not requiring earthing or protecting equipment without earthing connections

DIN rail mountable (35mm)

Impluse withstand voltage 15kV or more

products using patented

Applications

Gigabit Ethernet

Network cameras

VoIP enabled telephones and servers

Outdoor installed network devices

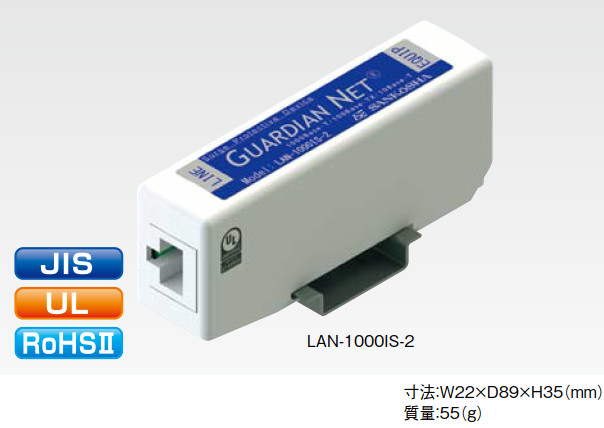

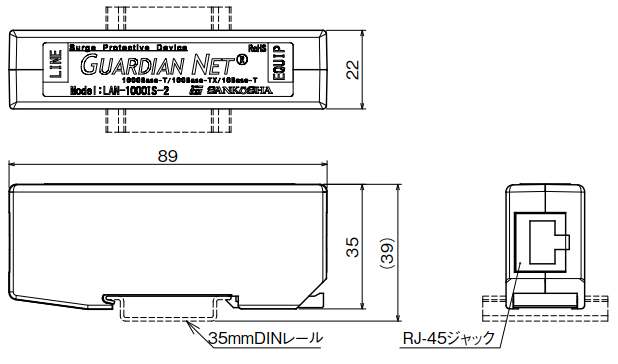

External view

K3OLUG)YR[9YE~KGZBAP7R

Item		Performance
Item		Performance
Applicable lines	IEEE802.3	10BASE-T
	IEEE802.3u	100BASE-TX
	IEEE802.3ab	1000BASE-T
	IEEE802.3bz	2.5GBASE-T
Transmission loss		2.0dB or less
AC withstand voltage		4kV or more
Impluse withstand voltage	1.2/50μｓ	15kA or more
Impluse withstand voltage	10/700μｓ	15kA or more

● LAN-1000IS-2 仕样书（下载资料）Down
