SKY-SV2[ ] ,SKY-SV3[ ]

IEC 61643-11、IEC 61643-21 compliant
RoHS2.0 compliant

Inquire Now Online Message

Conforming standards:

IEC 61643-11、IEC 61643-21 compliant

RoHS compliant

Features:

DIN rail mountable (35mm)

Built-in temperature control circuit breaking technology

LED Deterioration display function Multiple protection functions:

Power and Control、 network signals

Applications:

indoor and outdoor monitoring systems, video/audio

Lightning protection (surge protection) of the cradle head control line

Two-stage protection function, ensure network equipment from lightning, industrial interference caused by over voltage and over current damage

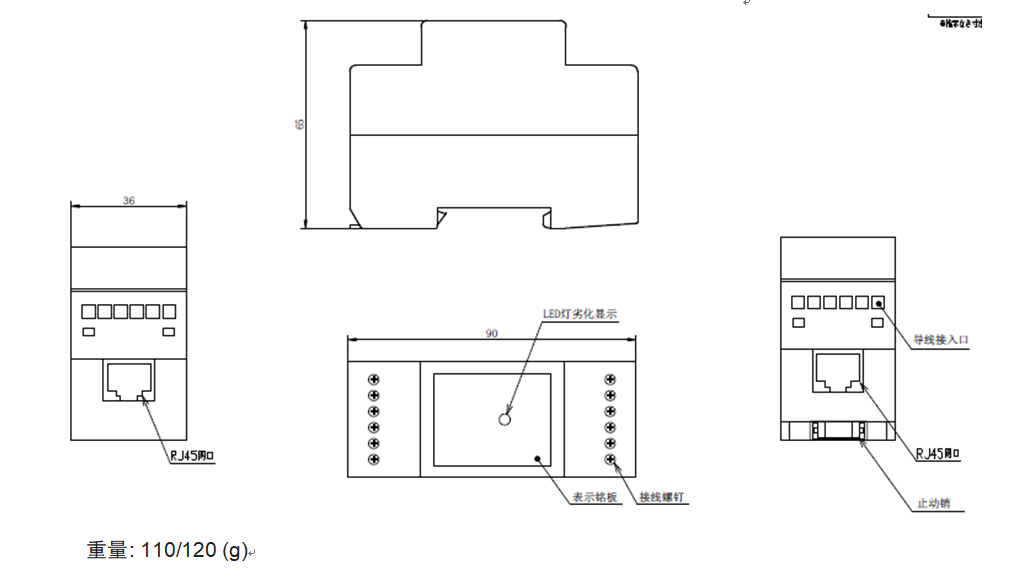

External View(SKY-SV2):

5WU5WZTJO86KN([16~C61

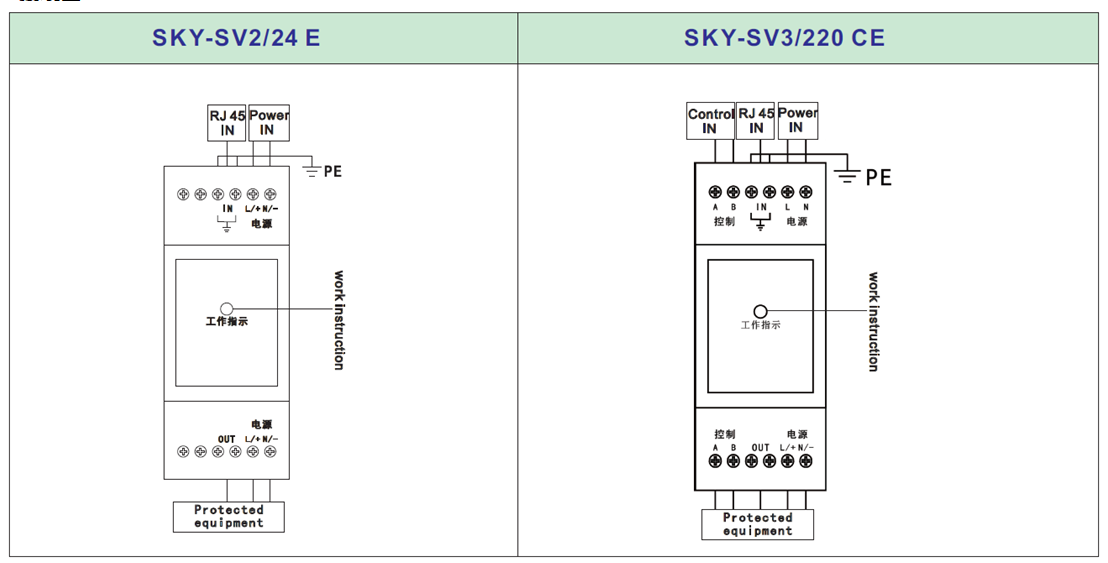

Installation examples:

28WL@28_X`W3()IPXT$D(]O

Item	Measurement condition	Characteristics
		SKY-SV2/△-□ SKY-SV3/△-□□
		AC POWER	DC POWER			Controlsigna(C)	NetworkRJ45(E)
Nominal voltage(UN)	-	220V	12V	24V	48V	12V	5V
Maximum continuous operation voltage(Uc)	L/N-PE L-N/N-PE(NPE)	275V	14V	27V	52V	18V	8V
Nominal discharge current(In)	8/20μs	5kA	5kA			5kA	2.5kA
Maximum discharge current(Imax)	8/20μs	10kA	10kA			10kA	5kA
Voltage protection level(Up)	L-N ,(+--) L/N-PE,(+/--PE)	- ≤1.5kV	- ≤750V			≤80V ≤750V	≤45V ≤750V
ransmission speed(fg)	-	-	-			2MHz	100MHz
Transmission loss(Ae)	-	-	-			0.5dB or less	0.5dB or less
