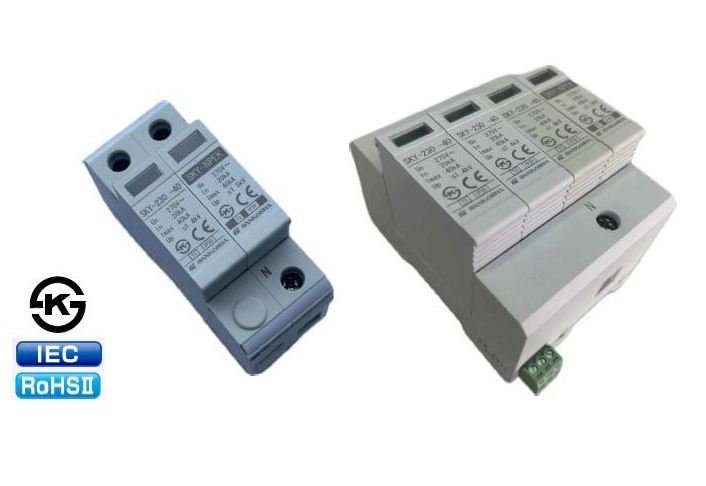

SKY-230[ ] Series

IEC 61643-11 compliant
RoHS compliant
Korean KS certification

Inquire Now Online Message

Features

Maximum discharge current up to 40kA (induction lightning waveform 8/20μs)

Deterioration display function

DIN rail mountable (35mm)

Applications

Low voltage power supply circuits in switchboards and distribution boards (AC 100V/200V/400V)

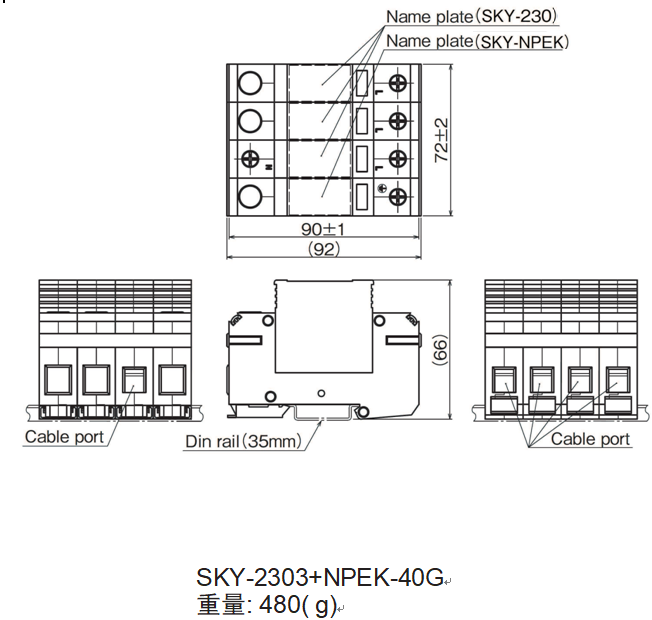

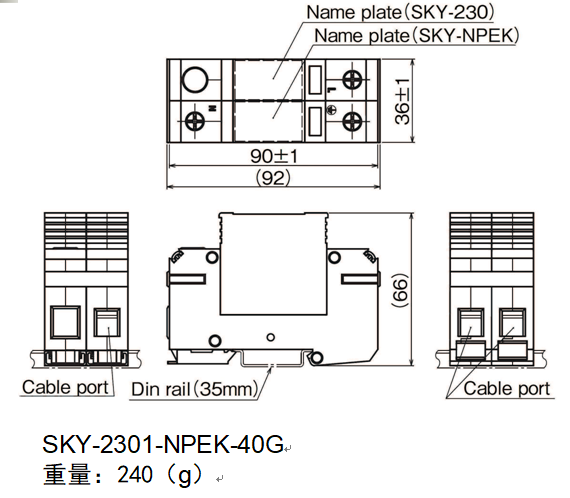

External View

VAIM09TR7BOKGHV3IXQFAXE

21@@ZB0X9`]CB95TYK8E1[M

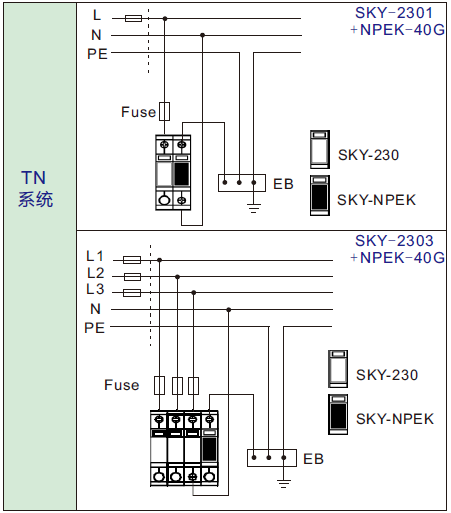

Installation examples

Item	Measurement condition	Characteristics
		SKY-2301+NPEK-40G	SKY-2303+NPEK-40G
Nominal voltage(UN)	—	230V (50/60Hz)
Maximum continuous operation voltage (Uc)	L-N/N-PE	275V (50/60Hz)
Nominal discharge current (In)	8/20μs	20kA
Maximum discharge current (Imax)	8/20μs	40kA
Voltage protection level (Up)	L-N/N-PE	≤1.4kV/≤1.5kV
