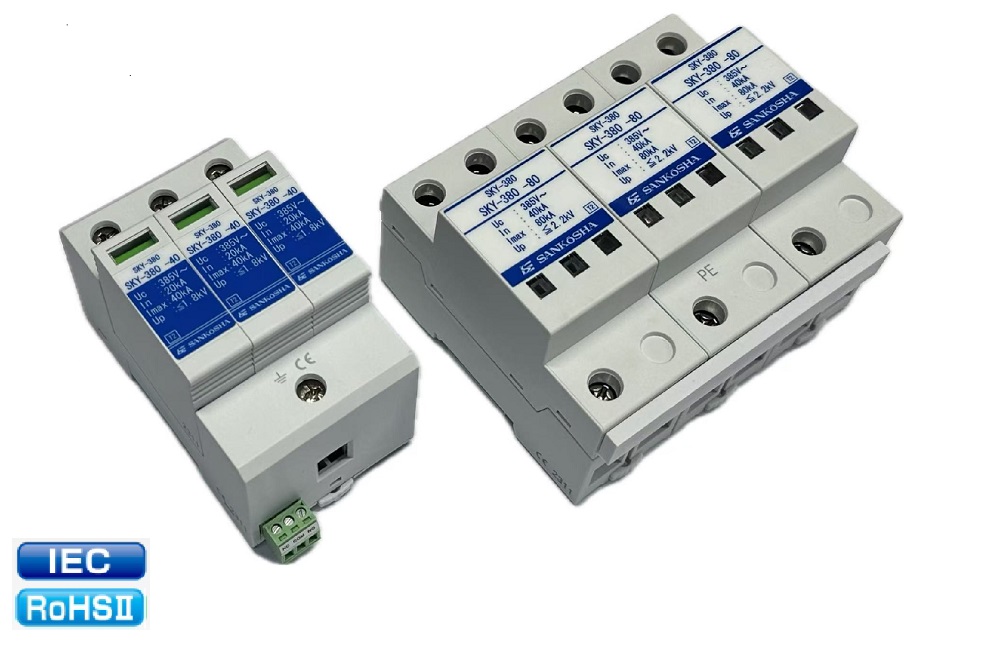

SKY-380[ ] Series

IEC 61643-11 compliant
RoHS II compliant

Inquire Now Online Message

Features

Maximum discharge current up to 140KA

(induction lightning waveform 8/20μs)

Deterioration display function

DIN rail mountable (35mm)

Applications

Low voltage power supply circuits in

switchboards and distribution boards (AC 100V/200V/400V)

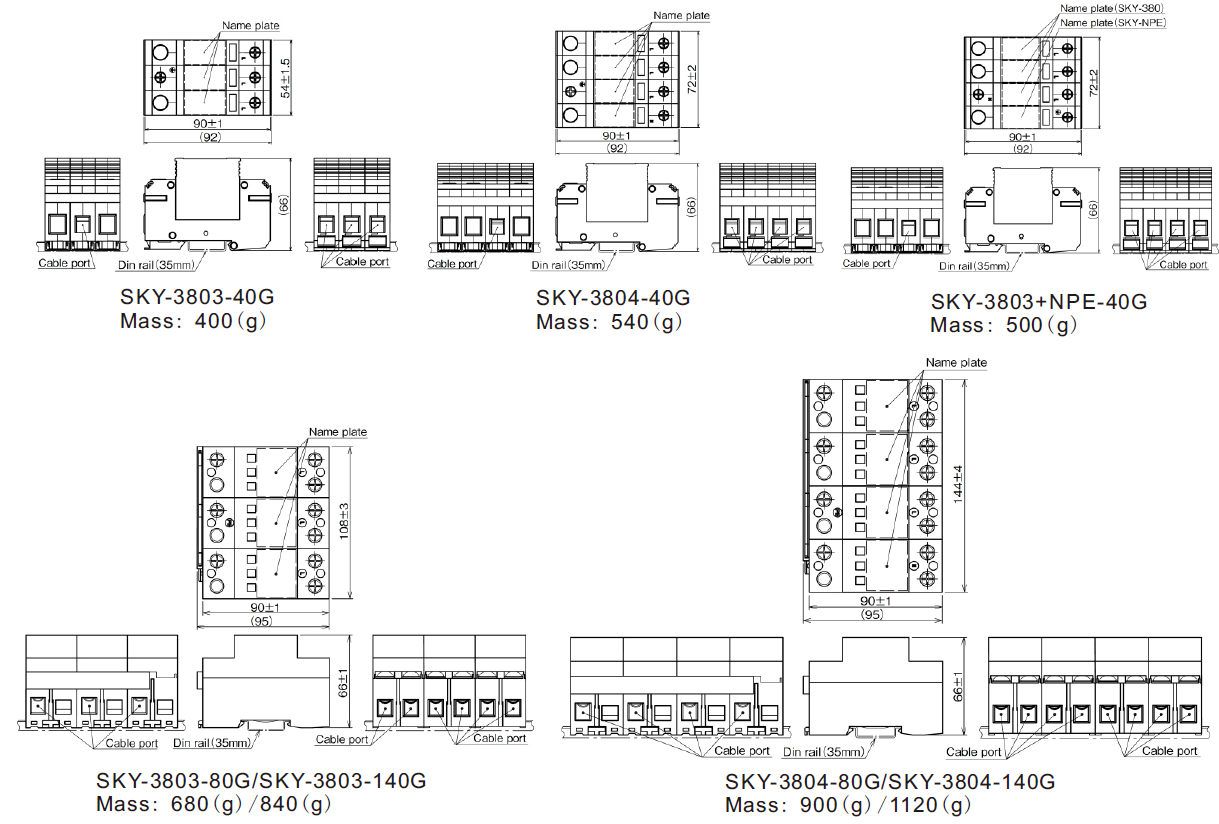

External View

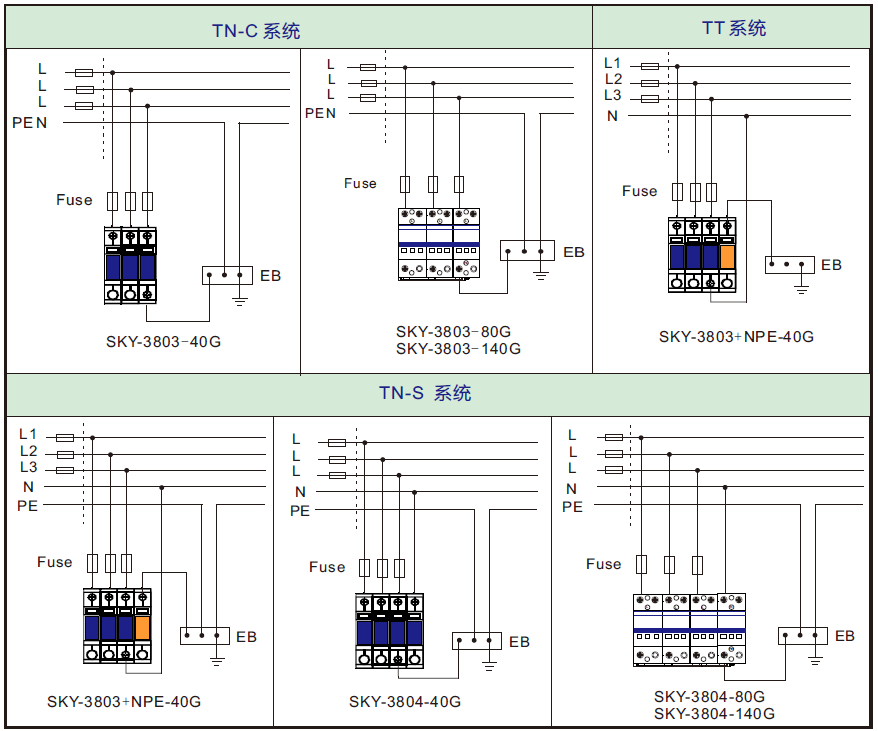

Installation examples

Item	Measurement condition	Characteristics
Item	Measurement condition	SKY-3803-40G	SKY-3803-80G	SKY-3803-140G	SKY-3804-40G	SKY-3804-80G	SKY-3804-140G	SKY-3803+NPE-40G
Nominal voltage(UN)	一	380V (50/60Hz)						380V /220V (50/60Hz)
Maximum continuous operation voltage (Uc)	L/N-PE L-N/N-PE(NPE)	385V (50/60Hz)						385V /255V (50/60Hz)
Nominal discharge current(In)	8/20μs	20kA	40kA	80kA	20kA	40kA	80kA	20kA
Maximum discharge current(Imax)	8/20μs	40kA	80kA	140kA	40kA	80kA	140kA	40kA
Voltage protection level(Up)	L/N-PE L-N/N-PE(NPE)	≤1.8kV	≤2.2kV	≤3.5kV	≤1.8kV	≤2.2kV	≤3.5kV	≤1.8kV
