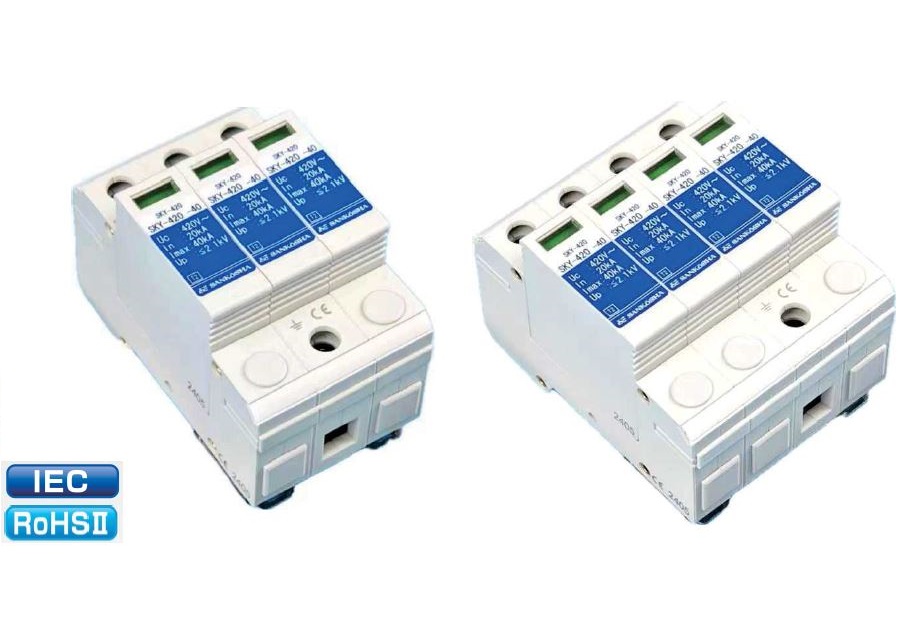

SKY-420[ ] Series

IEC 61643-11 compliant
RoHS Ⅱcompliant

Inquire Now Online Message

Features

Maximum discharge current up to 40kA

(induction lightning waveform 8/20μs)

Deterioration display function

DIN rail mountable (35mm)

Applications

Low voltage power supply circuits in switchboards and distribution boards (AC 230V/380V)

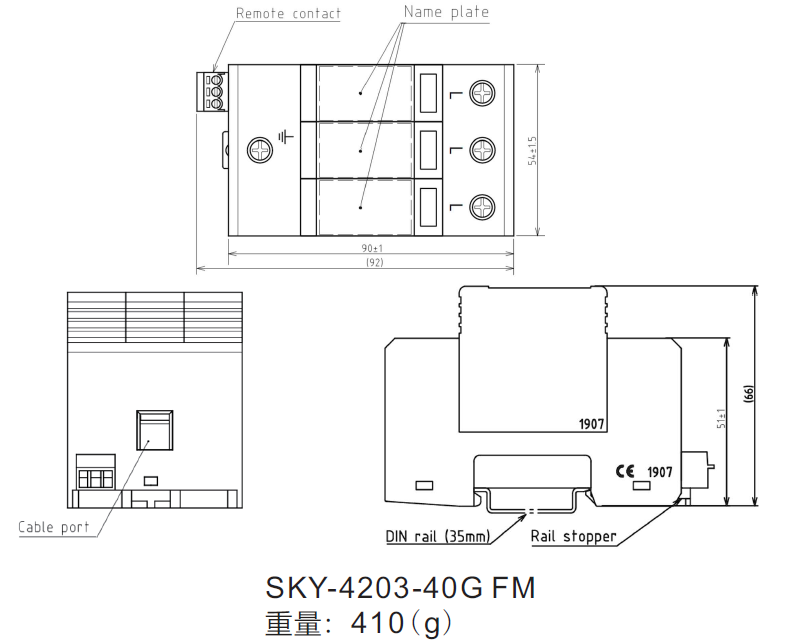

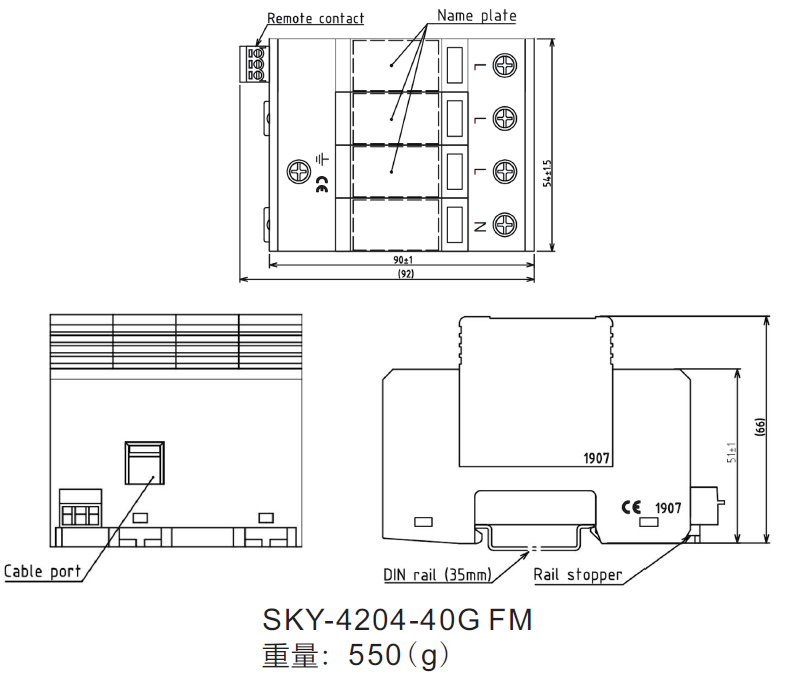

External View

[C%9_GM3K7`VYHMB(QOF8N

)II037C71V2YT)I@3NX9

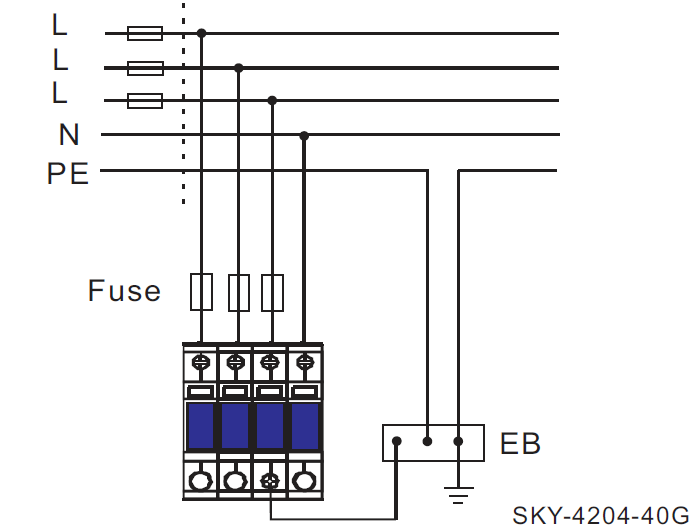

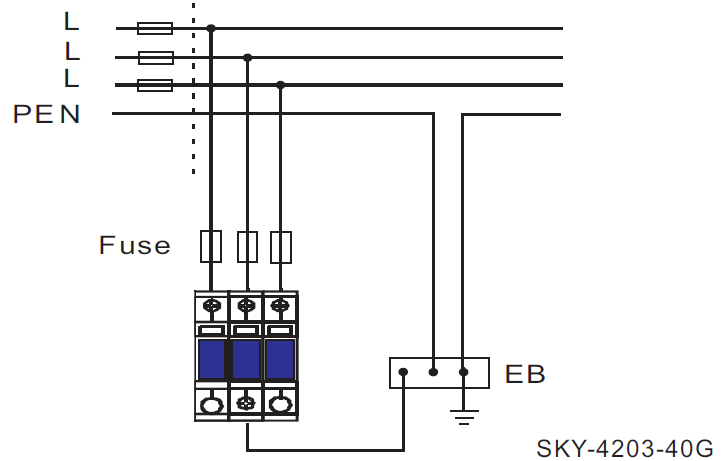

Installation examples

7$)Y6$B2WWIH@`SV5S)F[T

1K[Y`UL_DT~Q$U4(0EU7UN

Item	Measurement condition	Characteristics
		SKY-4203-40G	SKY-4204-40G
Nominal voltage(UN)	-	230V/380V (50/60Hz)
Maximum continuous operation voltage (Uc)	L-PE(N) L/N-PE	420V (50/60Hz)
Nominal discharge current (In)	8/20μs	20kA
Maximum discharge current (Imax)	8/20μs	40kA
Voltage protection level (Up)	L-PE(N) L/N-PE	≤2.1kV
