SKY-2302-40G , SKY-2302-40G FM

IEC 61643-11 compliant
RoHS compliant
Korean KS certification

Inquire Now Online Message

Feature

Maximum discharge current up to 40kA (induction lightning waveform 8/20μs)

Deterioration display function

DIN rail mountable (35mm)

Applications

Low voltage power supply circuits in

switchboards and distribution boards (AC 100V/200V)

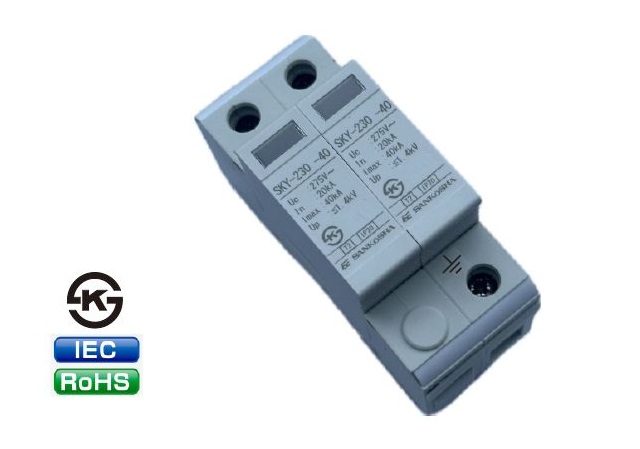

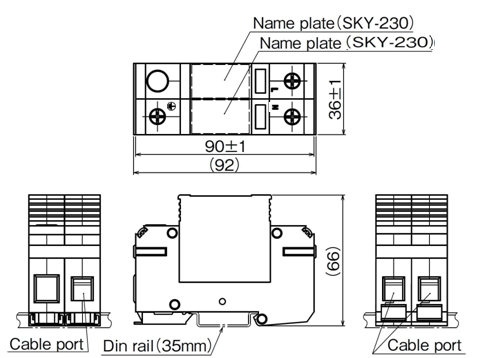

External View

BX5VEEX$TJCX55SL_X2MEZO

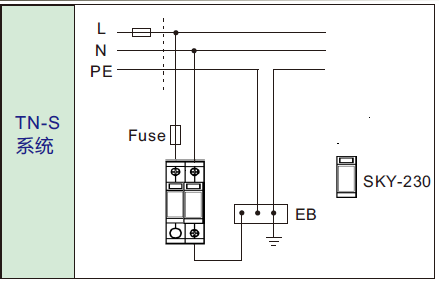

Installation examples

Item	Measurement condition	Characteristics
Item	Measurement condition	SKY-2302-40G SKY-2302-40G FM
Nominal voltage(UN)	—	230V (50/60Hz)
Maximum continuous operation voltage (Uc)	L/N-PE	275V (50/60Hz)
Nominal discharge current (In)	8/20μs	20kA
Maximum discharge current (Imax)	8/20μs	40kA
Voltage protection level (Up)	L/N-PE	≤1.4kV
