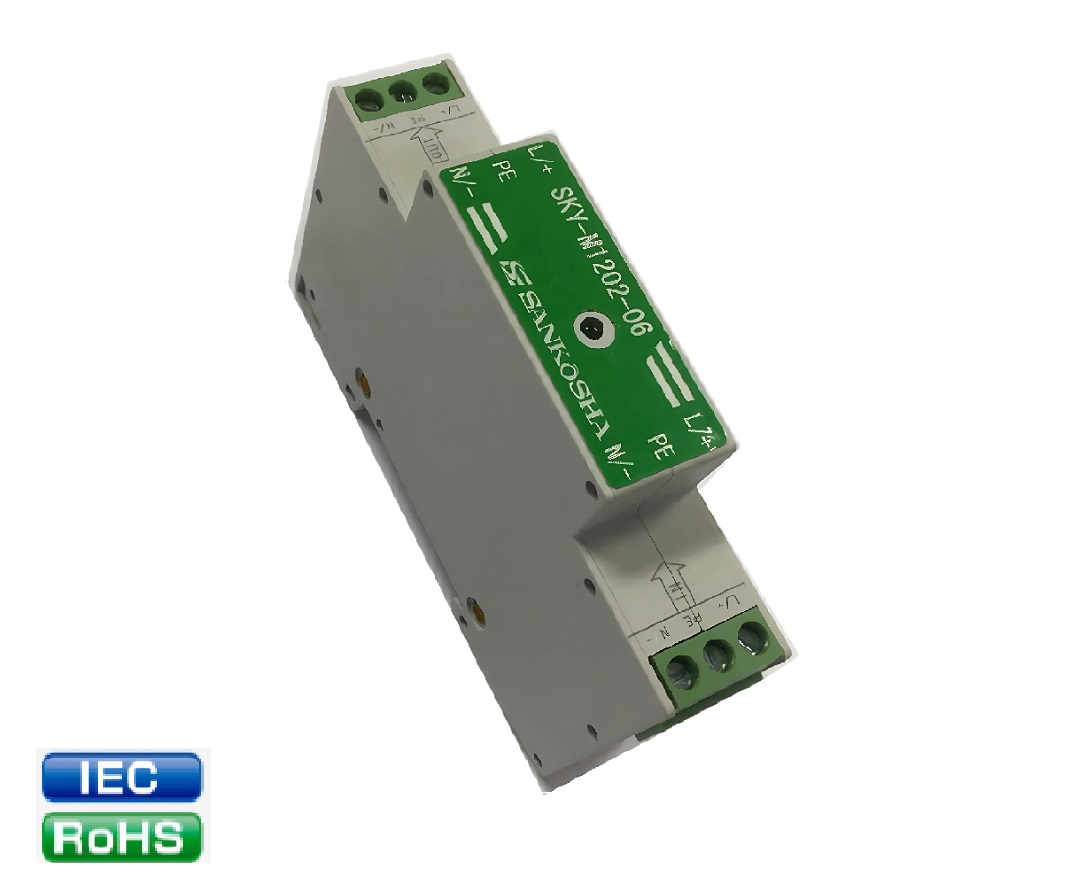

SKY-M1202-06

IEC 61643-11 compliant
RoHS compliant

Inquire Now Online Message

Features

Maximum discharge current up to 6kA (induction lightning waveform 8/20μs)

Protection for Single phase 120V system or DC200V system

Deterioration display function

(LED Operating state/ Fault indication)

Applications

Suitable for power system

DIN rail mountable (35mm)

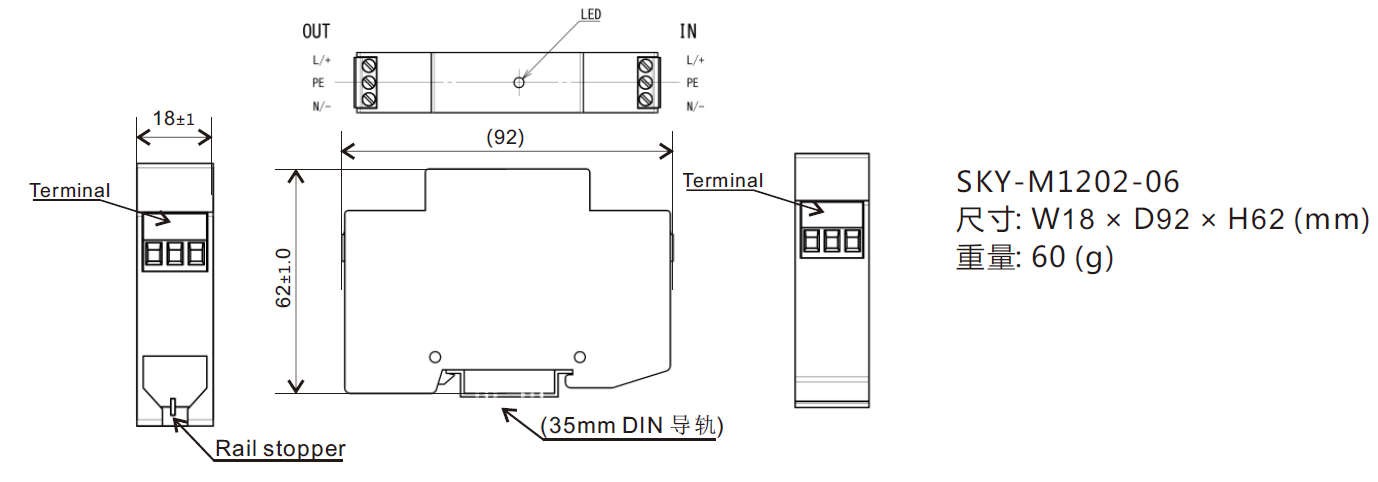

External View

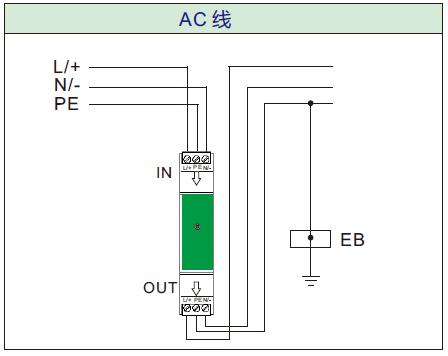

Installation examples

Item	Measurement condition	Performance
Nominal voltage(UN)	—	Single phase 120V(50/60Hz)
Maximum continuous operation voltage(Uc)	L/N－PE, L－N	150V (50/60Hz) / DC200V
Nominal discharge current(In)	8/20μs	3kA
Maximum discharge current(Imax)	8/20μs	6kA
Voltage protection level(Up)	L/N－PE, L－N	≤0.7kV
