SKY-690[ ] Series

IEC 61643-11
compliant RoHS compliant

Inquire Now Online Message

Features

Maximum discharge current up to 40kA (induction lightning waveform 8/20μs)

Deterioration display function

DIN rail mountable (35mm)

Applications

Low voltage power supply circuits in switchboards and distribution boards (AC 600V-690V)

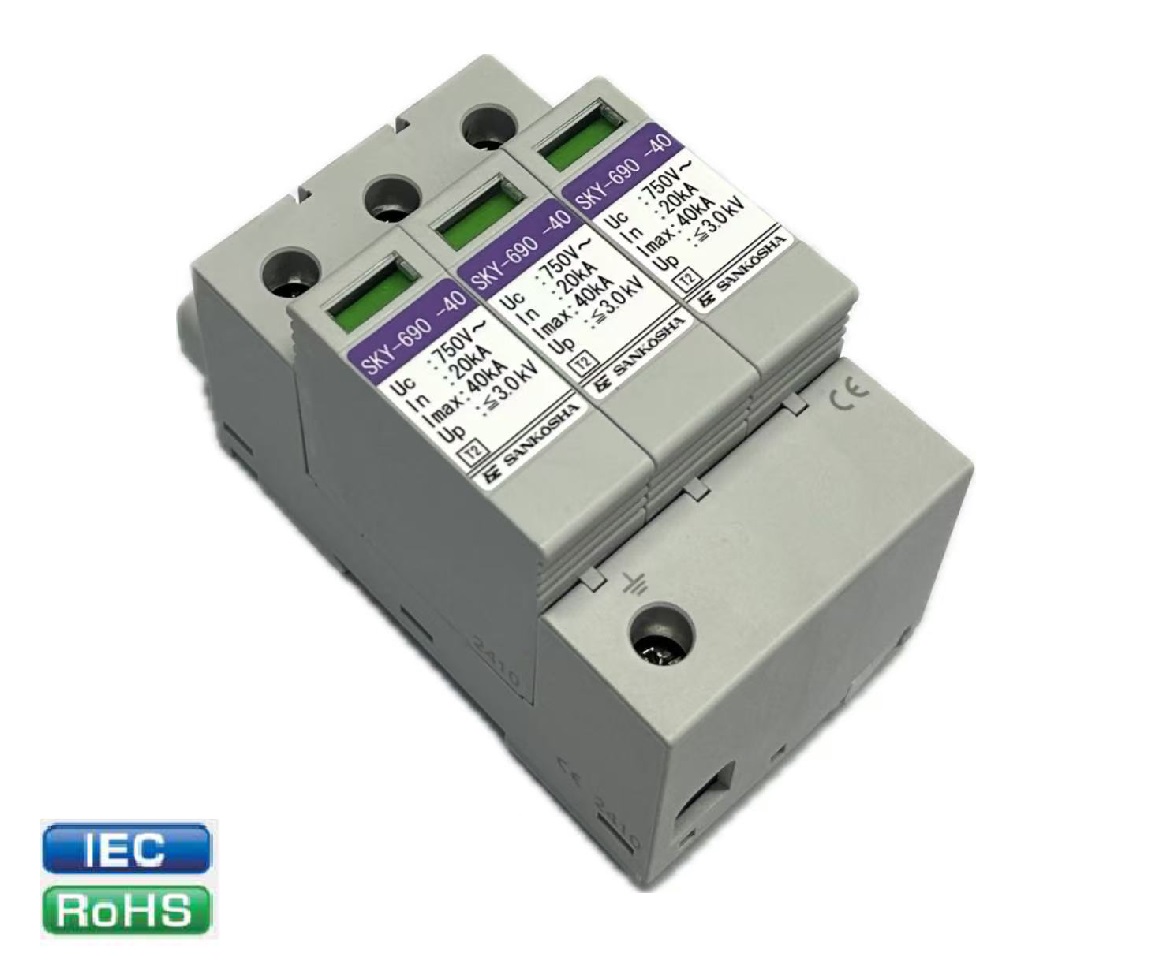

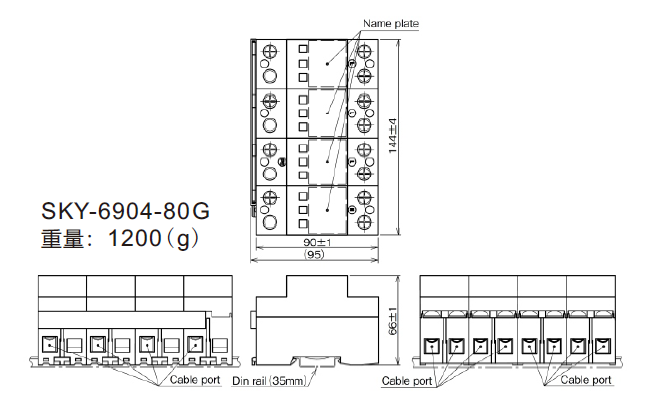

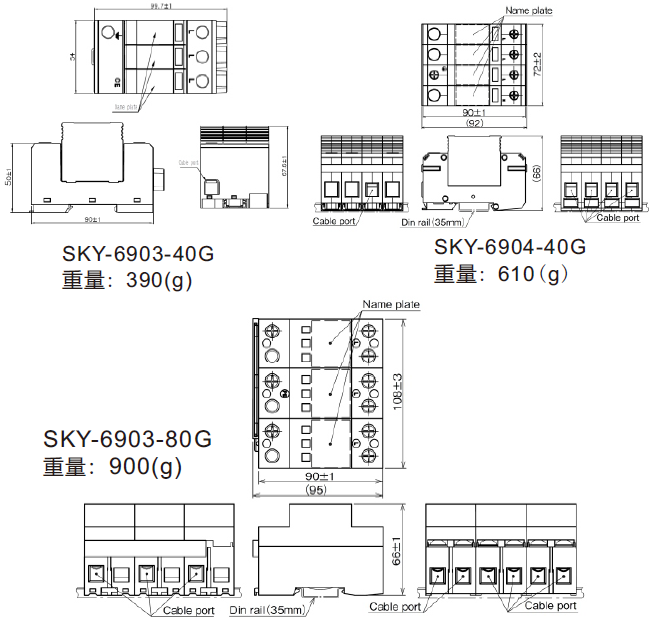

External View

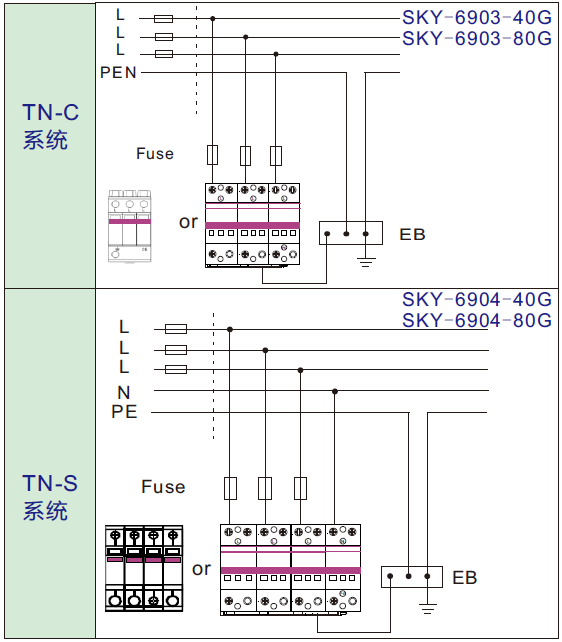

Installation examples

Item	Measurement condition	Performance
		SKY-690△-40G		SKY-690△-80G
Nominal voltage(UN)	—	600-690V (50/60Hz)
Maximum continuous operation voltage (Uc)	L-PE N-PE	AC750V	AC1000V	AC750V	AC1000V
Nominal discharge current (In)	8/20μs	20kA		40kA
Maximum discharge current (Imax)	8/20μs	40kA		80kA
Voltage protection level (Up)	L-PE N-PE	≤3.0kV	≤3.8kV	≤3.2kV	≤4.2kV
