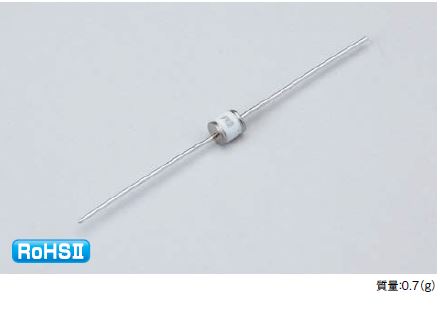

2-electrode tubes/Y05 type

Conforming standards:
•RoHS Ⅱ compliant

Inquire Now Online Message

Product Details

Specification Parameters

Attachment Download

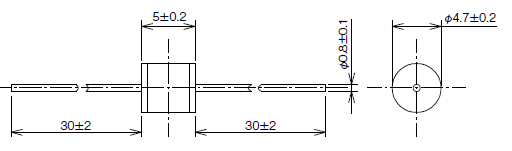

External view:

)@Y$@C778J2H)80CNK0$60

Item	Conditions	Performance
Item	Conditions	Y05-90「」	Y05-230「」	Y05-350「」	Y05-600「」
DC spark over voltage	100V/s	90V±20％	230V±20％	35V±20％	600V±20％
Impulse Spark over voltage	100V/μｓ	≦400V	̶	≦650V	≦900V
Impulse Spark over voltage	1KV/μs	≦500V	≦650V	≦750V	≦1,000V
Insulation resistance	DC50V	≧10,000MΩ	̶
	DC100V	̶	≧10,000MΩ		̶
	DC250V	̶			≧10,000MΩ
Electrostatic capacity	1MHz	≦1.0pF
DC holdover characteristics	DC52V	≦150ms
AC discharge current	AC5A·1S	5times	10times
Impulse discharge current	8/20μs 5kA	+5、‐5times			̶
Impulse discharge current	8/20μs 2.5kA	̶			+5、‐5times
Impulse life	10/1000μs 100A	300times

● Y05-90 仕样书（下载资料）Down
● Y05-350 仕样书（下载资料）Down
● Y05-600 仕样书（下载资料）Down
● Y05-230英仕样书（下载资料）Down
