2-electrode tubes/Y06S Y06SZ type

Conforming standards:
RoHSⅡ compliant

Inquire Now Online Message

Product Details

Specification Parameters

Attachment Download

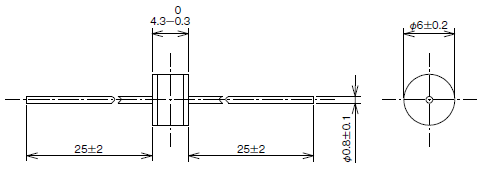

External view:

OSR%XPL(@XDMVY4MG9(9]N

Item	Conditions	Performance
		Y06S-90「」	Y06S-100「」	Y06SZ-230「」	Y06SZ-350「」
DC spark over voltage	100V/s	90V±20％	100V±20％	230V±50V	350V±70V
Impulse sparkover voltage	1kV/μs	≦700V			≦800V
	10/200μs﹒2kV	≦1,000V
Insulation resistance	DC50V	≧10,000ＭΩ		̶
	DC100V	̶		≧10,000ＭΩ
Electrostatic capacity	1MHz	≦1.0pF
AC discharge current	AC3A﹒1s	1time		̶
	AC5A・1s	̶		10次
Impulse discharge current	8/20μs﹒ 3kA	1time		̶
	10/200μs﹒ 2kA	+1、-1time		̶
	8/20μs﹒ 5kA	̶		+5、‐5times
Impulse life	10/200μs﹒ 100A	200times		̶
	10/1,000μs﹒ 100A	̶		200times
