GDT
Home > Products > GDT >

2-electrode tubes/Y type

Conforming standards:
●UL standard acquired (E328370)
●RoHS Ⅱ compliant

Product Details

Specification Parameters

Attachment Download

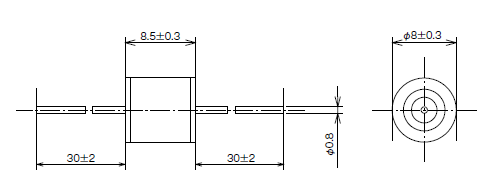

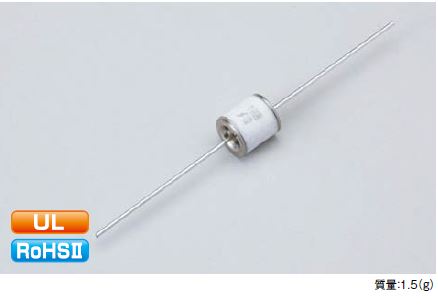

External view:


SJW(HL15D7V4M(1HR6X`)KL

Item

Conditions

Performance

Y-152「」

Y-212「」

Y-302「」

Y-402「」

Y-602「」

DC sparkover voltage

1kV/S

1,500V±20%

2,100V±400V

-

5kV/S

-

3,000V±20%

4,000V±20%

6,000V±20%

Impulse sparkover voltage

100V/μs

≦2,200V

-

≦4,000V

≦5,000V

≦8,000V

10/200μs﹒3kV

-

≦3,000V

-

Insulation resistance

DC500V

≧10,000MΩ

-

DC1000V

-

≧10,000MΩ

Electrostatic capacity

1MHz

≦1.0pF

AC discharge current

AC1A﹒1s

10 times

-

10 times

Impulse discharge current

8/20μs﹒ 3kA

+5、‐5 times

8/200μs﹒ 10kA

1 time

-

1 time

-

8/200μs﹒ 1kA

-

2 times

+5、‐5 times

8/20μs﹒ 5kA

-

1 time

Impulse life

10/1,000μs﹒500A

10 times

-

10 times

8/20μs﹒ 100A

-

100 times

-
