Features:
●Large capacity arrester with maximum discharge current of 100kA
●Best suited for lightning surge countermeasures for railway signal,electrical power transmission and other large capacity lines

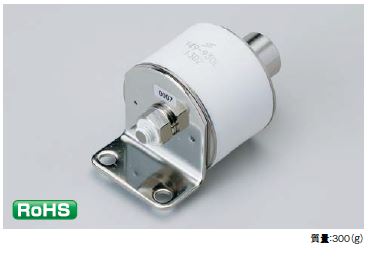

External view：
Item | Conditions | Performance | |||||||||
Y49-230 | Y49-350 | Y49-450 | Y49-550 | Y49-700 | Y49-930 | Y49-1000 | Y49-1200 | Y49-1400 | Y49-12kV | ||
DC sparkover voltage | 100V/s | 230V±20% | 350V±20％ | 450V±90V | 550V±100V | — | |||||
500V/s | — | 700V±100V | 930V±90V | 1000V±150V | 1200V±200V | 1400V±150V | — | ||||
5Kv/s | — | 12kV±3kV | |||||||||
Impulse sparkover voltage | 10/200μｓ·3kV | ≦1000V | ≦1500V | — | ≦2800V | — | |||||
Insulation resistance | DC100V | ≧10,000ＭΩ | — | ||||||||
DC250V | — | ≧10,000ＭΩ | ≧100ＭΩ | — | ≧100ＭΩ | — | |||||
DC500V | — | ≧10,000ＭΩ | —— | ≧10,000ＭΩ | —— | ||||||
DC1000V | — | ≧100ＭΩ | |||||||||
Electrostatic capacity | 1MHz | ≦10pF | — | ≦10pF | — | ||||||
AC discharge current | AC15A﹒80s | 30 times | — | ||||||||
AC1000A﹒0.3s | — | 30 times | — | 10 times | — | ||||||
AC20A﹒80s | — | 30 times | — | ||||||||
AC70A﹒20s | — | 20 times | — | 20 times | — | ||||||
AC500A﹒0.3s | — | 10 times | — | 10 times | — | ||||||
Impulse discharge current | 8/20μｓ﹒20kA | 30 times | — | ||||||||
10/200μｓ﹒20kA | — | 30 times | — | ||||||||
8/20μｓ﹒40kA | — | 5 times | |||||||||
