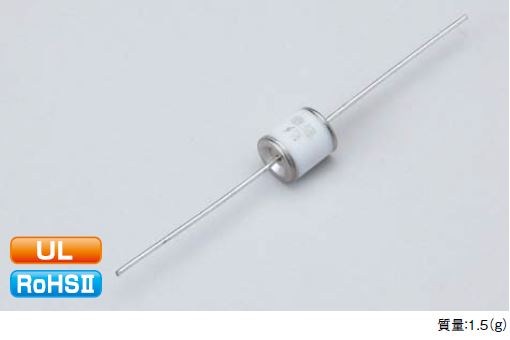

    2-electrode tubes/Y08SV type

    Conforming standards:
    ●UL standard acquired (E328370)
    ●RoHSⅡ compliant
    Inquire Now Online Message

    Product Details

    Specification Parameters

    Attachment Download

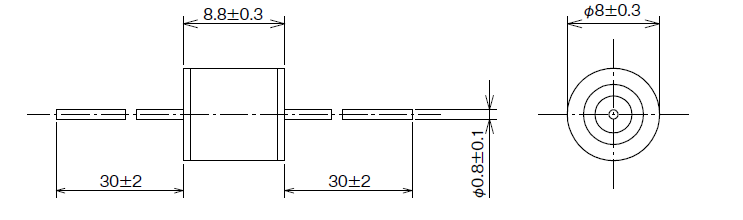

    External view:




    ]$E5)_~T~U`%7ZY7@MDUF

    Item

    Conditions

    Performance

    Y08SV-272「」

    Y08SV-312「」

    DC sparkover voltage

    5kV/s

    2,430～3,000V

    2,850～3,500V

    Impulse sparkover voltage

    1kV/μs

    ≦3,900V

    ≦3,700V

    Insulation resistance

    DC1000V

    ≧1000ＭΩ

    Electrostatic capacity

    1MHz

    ≦1.0pF

    Impulse discharge current

    8/20μs﹒ 3kA

    +10，-10times

    Impulse life

    8/20μs﹒ 100A

    300times


    ●  Y08SV-272 仕样书（下载资料）Down
    ●  Y08SV-312 仕样书（下载资料）Down
