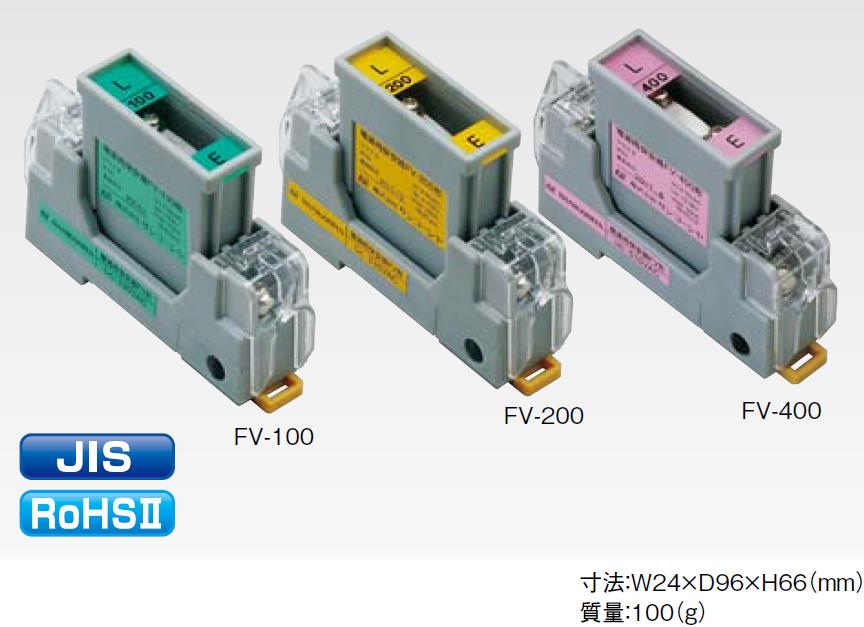

FV-100 , FV-200 , FV-400

IEC ClassⅡ compliant
IEC 61643-11 compliant
RoHSⅡcompliant

Inquire Now Online Message

Features

Maximum discharge current 20kA (induction lightning waveform 8/20µs)

Plug-in type

Deterioration display function(warning contact output terminal attached)

DIN rail mountable（35mm）

Applications

Low-voltage power supply circuit for switchboards and distributors (AC100V/200V/400V)

Power circuits for various control devices(AC100V/200V/400V)

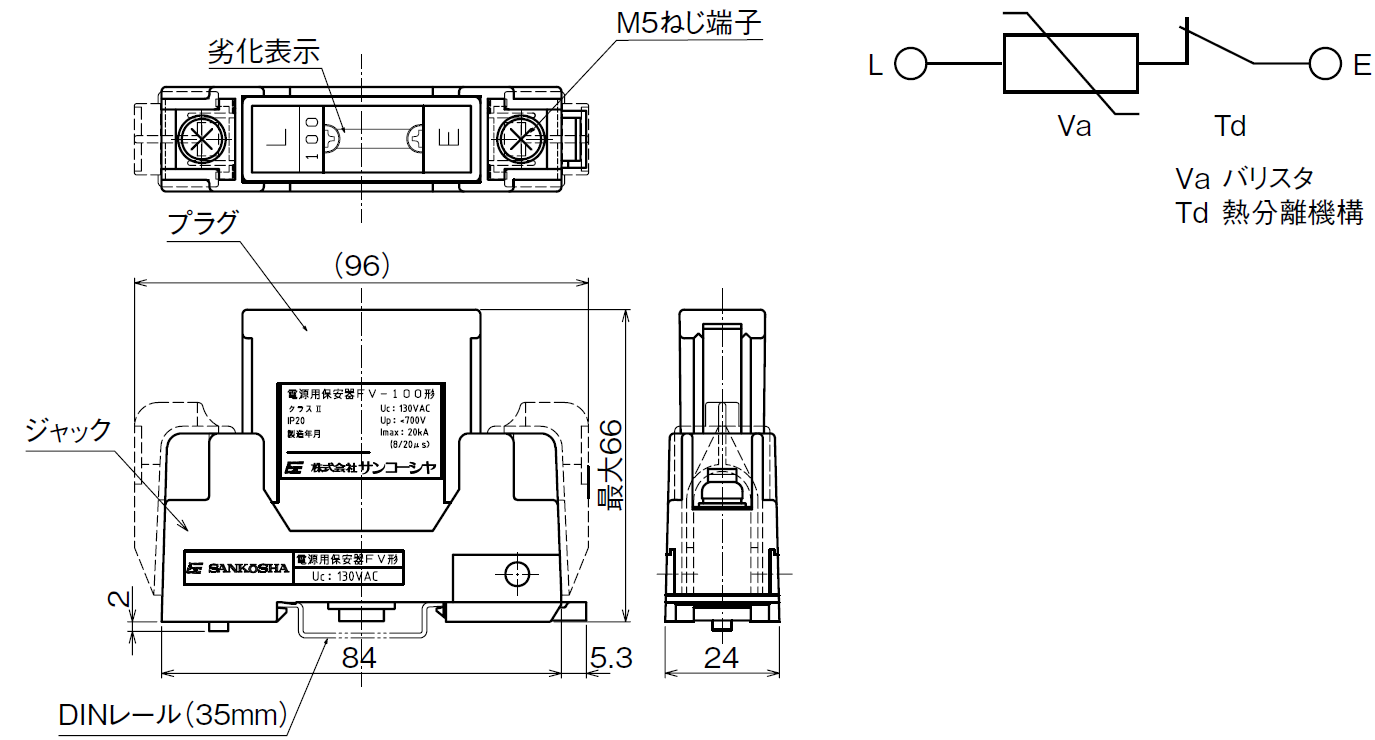

Appearance diagram, Circuit diagram

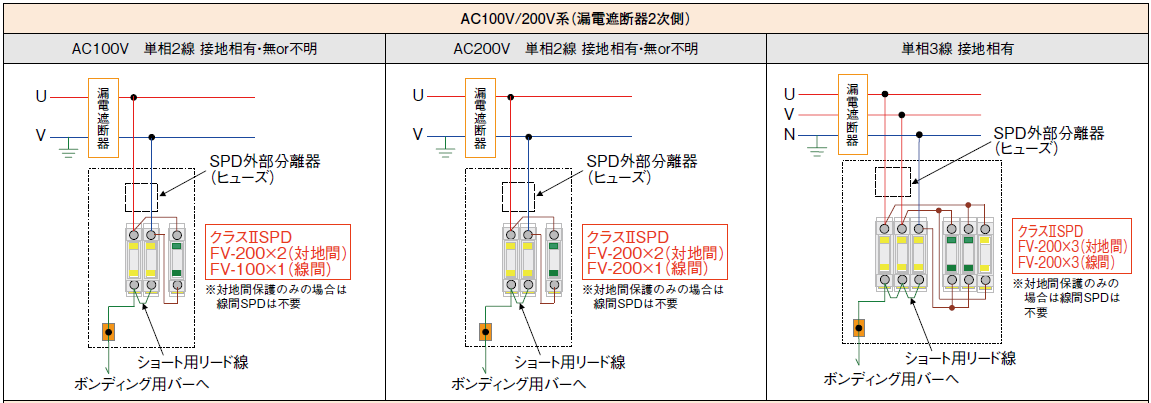

Installation examples (FV-100,FV-200)

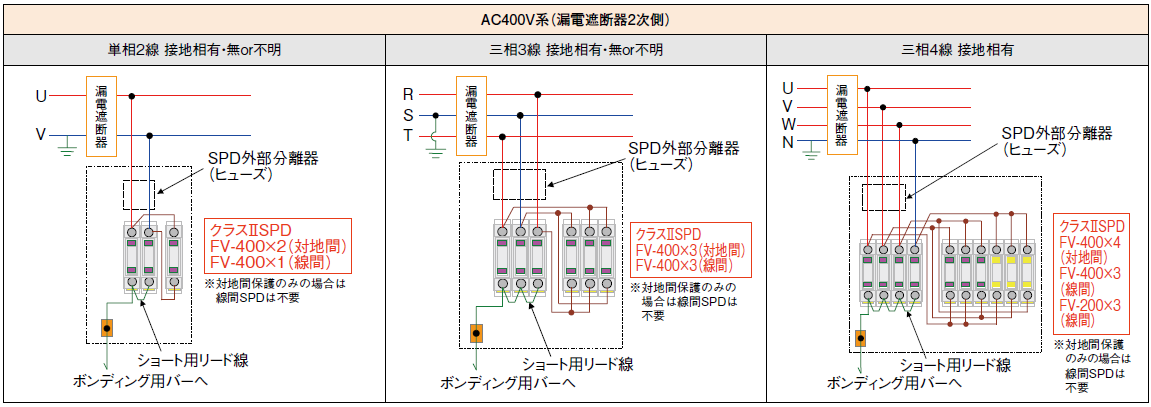

Installation examples (FV-400)

Item	Measurement conditions	Performance
Item	Measurement conditions	FV-100	FV-200	FV-400
Maximum continuous operating voltage (50/60Hz)(Uc)	─	130V	230V	510V
Maximum discharge current(lmax)	8/20µs	20kA
Nominal discharge current (ln)	8/20µs	10kA
Voltage protection level (Up)	Based on IEC	0.7 kV or less	1.2 kV or less	2 kV or less
