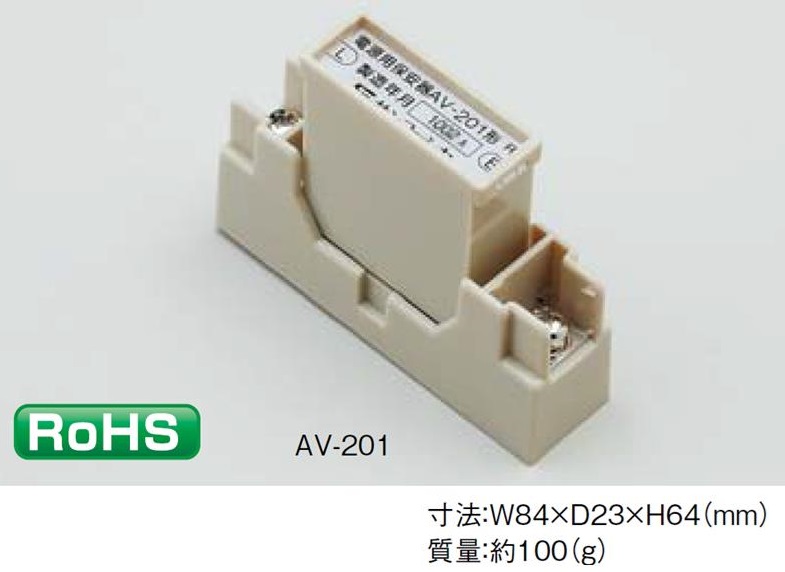

    AV-201

    RoHS compliant
    Inquire Now Online Message

    Product Details

    Specification Parameters

    Attachment Download

    Features

    Plug-in type

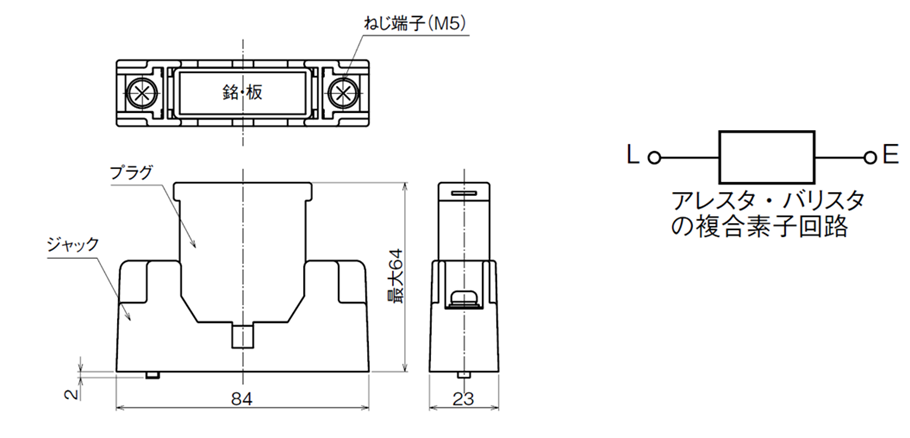

    Appearance diagram, Circuit diagram




    Item

     Measurement  conditions

    Performance

    Maximum operating circuit voltage

    ―

    AC240Vrms・DC335V

    DC voltage Vs

    Voltage to ground

    490V±70V

    Impulse discharge action

    voltage

    infliction  1.2/50μs 10kV

    1.5KVor less

    infliction  10/200μs 3KV

    800Vor less

    Limiting voltage

    10/200μs  200A（10μs  after）

    725Vor less

    Inrush current resistance

    8/20μs

    20kA

    10/200μs

    3kA





    ●  AV-201 仕样书（下载资料）Down
