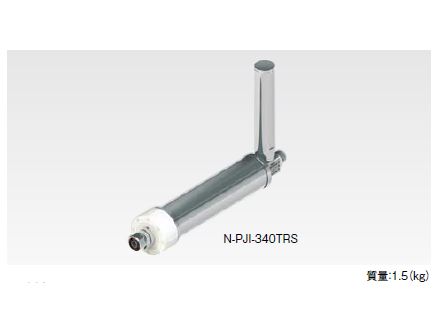

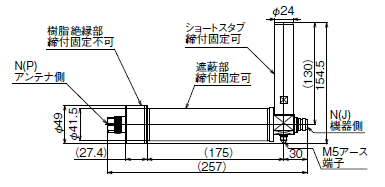

N-PJI-340TRS type

Railway wireless installation
340MHz isolation type

Inquire Now Online Message

Product Details

Specification Parameters

Attachment Download

Applications：

Railway wireless installation

340MHz isolation type

0G`4T@[E~JRA_N13659LY]C

Item		Performance
Connector type		N type（P-J）
Frequency bandwidth		320MHz～360MHz
V.S.W.R	320MHz or more 330MHz under	1.3 or less
V.S.W.R	330MHz or more 355MHz under	1.2 or less
V.S.W.R	355MHz or more 360MHz or less	1.3 or less
Insertion loss		0.2dB or less
Impedance		50Ω
Impulse withstand voltage	1.2/50μs	30kV

● N-PJI-340TRS 仕样书（下载资料）Down
