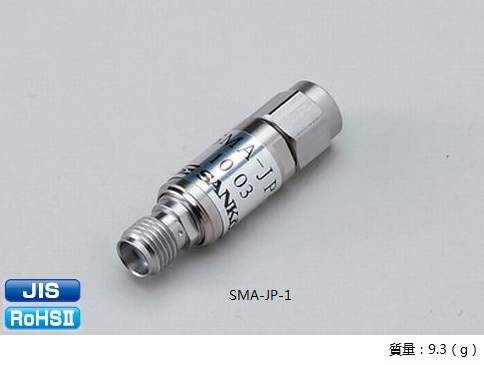

    SMA-JP-1 type

    JIS C 5381-21（IEC61643-21）compliant
    RoHSⅡ compliant
    Inquire Now Online Message

    Product Details

    Specification Parameters

    Attachment Download

    Conforming standards：

    JIS C 5381-21（IEC61643-21）compliant

    RoHSⅡ compliant


    Applications：

    Microwave wireless communication devices

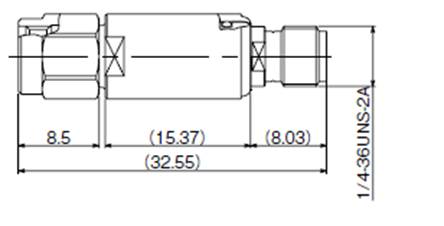

    QQ图片20250509173252



    Item

    Performance

    Connector type

    SMA type（P-J）

    Frequency bandwidth

    DC～3GHz

    V.S.W.R

    1.2 or less

    Insertion loss

    0.3dB or less

    Impedance

    50Ω

    Permissible power

    10W

    Voltage protection   level

    700V or less

    DC sparkover voltage

    DC120V or more

    Impulse durability

    CategoryC2（8/20μs）

    5KA（10 times）

    CategoryD1（10/350μs）

    2.5KA（2 times）


    ●  SMA-JP-1 仕样书（下载资料）Down
