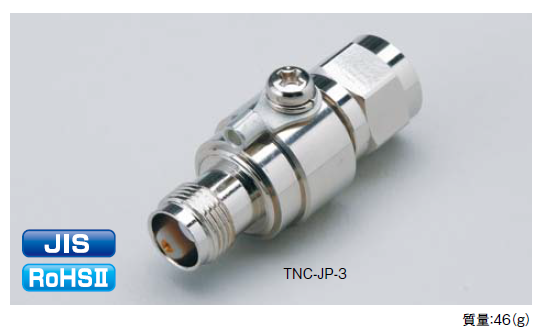

    TNC-JP-3 type

    JIS C 5381-21（IEC61643-21）compliant
    RoHSⅡcompliant
    Inquire Now Online Message

    Product Details

    Specification Parameters

    Attachment Download

    Conforming standards：

    JIS C 5381-21（IEC61643-21）compliant

    RoHSⅡcompliant


    Applications：

    Mobile telephone base stations

    Wireless LAN antenna

    Various kinds of communication devices


    8LN]USF)Z6@~V(JNHP_(H

    Item

    Performance

    Connector   type

    TNC type（P-J）

    Frequency   bandwidth

    DC～3GHz

    V.S.W.R

    1.2 or   less

    Insertion   loss

    0.3dB   or less

    Impedance

    50Ω

    Permissible   power

    10W

    Voltage   protection level

    700V or   less

    DC   sparkover voltage

    DC120V or more

    Impulse durability

    CategoryC2（8/20㎲）

    5kA（1 times)

    CategoryD1（10/350μs）

    2.5kA（2 times)


    ●  TNC-JP-3 仕样书（下载资料）Down
