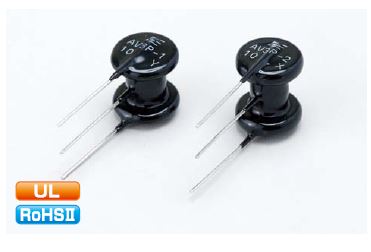

    AV3P-1, AV3P-2 type

    Conforming standards:
    ● UL standard acquired (E328370)
    ● RoHS Ⅱ compliant
    Inquire Now Online Message

    Product Details

    Specification Parameters

    Attachment Download

    Applications:

    ● Protection of low voltage power supply circuits of AC125V,

    240V or less

    ● Compact element type allows for space-saving installation.

    ● 3-electrode configuration means that a single device can cover

    a single-phase two-wire type line.

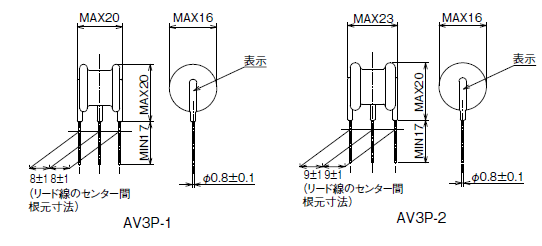

    External view：

    K4N~1(8)~R$3]3Z8OO(NG



    Item

    Conditions

    Performance


    AV3P1

    AV3P2


    Rated circuit voltage

    AC125V

    AC240V


    Impulse spark over voltage

    10/200μs・3kVapplied

    800Vor less

    1.2KVor less



    Impulse discharge current

    8/20μs・9kA

    1time



    Mass（g）

    8

    10



    ●  AV3P1 仕样书（下载资料）Down
    ●  AV3P2 仕样书（下载资料）Down
