    AV11、AV13、AV14 type

    Conforming standards:
    •UL standard acquired (E328370)
    •RoHS Ⅱ compliant
    Inquire Now Online Message

    Product Details

    Specification Parameters

    Attachment Download

    Features:

    •Protection of low voltage power supply circuits of AC125V, 240V, 440V or less

    •Compact element type allows for space-saving installation.

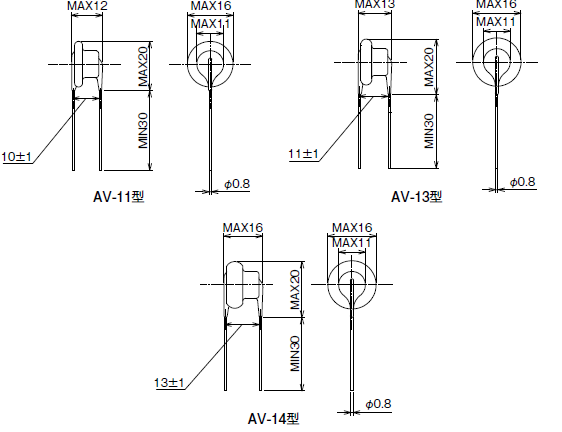

    External view：

    [H`_U`JP`S1~L1T[%H22G5

    Item

    condition

    Performance


    AV11 type

    AV13 type

    AV14 type


    Rated circuit voltage

    AC125V

    AC240V

    AC440V


    Impulse sparkover voltage

    10/200μs・3kV   applied

    800V or less

    1.2kV or less

    2kV or less



    Impulse current tolerance

    8/20μs・ 4.5kA

    1time


    Mass（g）

    4

    5

    6



    ●  AV11 仕样书（下载资料）Down
    ●  AV13 仕样书（下载资料）Down
    ●  AV14 仕样书（下载资料）Down
