3-electrode tubes/3Y06 type

Conforming standards:
●UL standard acquired (E140906)
●RoHS Ⅱ compliant

Inquire Now Online Message

Features:

●With failsafe function

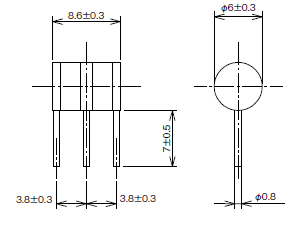

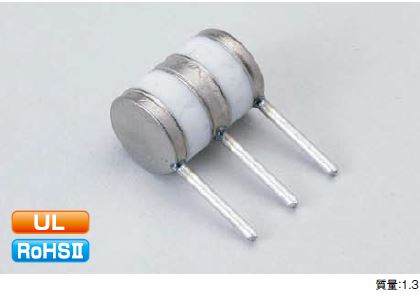

External view:

2Y5L]NSI%0A%90ZE3OP6I

Item	Conditions	Performance
		3Y06-90「」		3Y06-230「」	3Y06-350「」
DC sparkover voltage	100V/s	90Ｖ±20％		230Ｖ±20％	350Ｖ±20％

Impulse sparkover voltage	1kV/μｓ	≦850V		≦700V	≦750V

Insulation resistance	DC50V	≧10,000ＭΩ		–
	DC100V	–		≧10,000ＭΩ
Electrostatic capacity	1MHz	≦3.0pF
DC holdover characteristics	DC52V	≦150ms		–
	DC135V	–		≦150ms	–
	DC150V	–			≦150ms
AC discharge current	AC5A×2·1s	5 times
	AC10A×2·1s	–			1 time
Impulse Discharge current	8/20μｓ﹒2.5kA×2	+5，-5 times	–		+5，-5 times
	8/20μｓ﹒5kA×2	–	+5，-5 times		–
	8/20μｓ﹒10kA×2	–			1 time
Impulse life	10/1000μｓ﹒100A×2	100 times	300 times		100 times
